NCL30185 Datasheet, Controller, ON Semiconductor

NCL30185 Features

  • Controller PIN CONNECTIONS 1 ZCD VCC
  • Quasi
  • resonant Peak Current
  • mode Control Operation VS DRV
  • Valley Lockout Optimizes Efficiency over the Line/Load Rang

PDF File Details

Part number:

NCL30185

Manufacturer:

ON Semiconductor ↗

File Size:

314.92kb

Download:

📄 Datasheet

Description:

Quasi-resonant primary side current-mode controller. Pin No Pin Name Function 1 ZCD Zero Crossing Detection 2 VS Input Voltage Sensing 3 COMP Filtering Capacitor 4 SD Thermal F

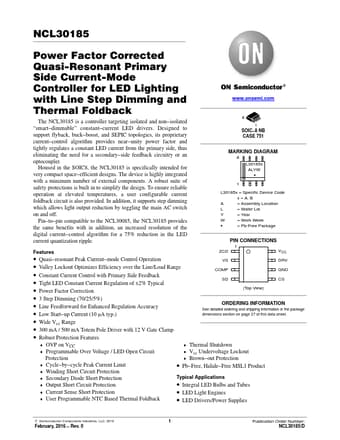

Datasheet Preview: NCL30185 📥 Download PDF (314.92kb)
Page 2 of NCL30185 Page 3 of NCL30185

NCL30185 Application

  • Applications
  • Integral LED Bulbs and Tubes
  • Current Sense Short Protection
  • User Programmable NTC Based Thermal Foldback
