NCN5150 Datasheet - ON Semiconductor

NCN5150 - Wired M-BUS Slave Transceiver

The NCN5150 is a single-chip integrated slave transceiver for use in two-wire Meter Bus (M-BUS) slave devices and repeaters.

The transceiver provides all of the functions needed to satisfy the European Standards EN 13757 *2 and EN 1434 *3 describing the physical layer requirements for

NCN5150 Features

* Single-chip MBUS Transceiver

* UART Communication Speeds Up to 38,400 baud

* Integrated 3.3 V VDD LDO Regulator with Extended Peak Current Capability of 15 mA

* Supports Powering Slave Device from the Bus or from External Power Supply

* Adjustable I/O Levels

NCN5150_ONSemiconductor.pdf

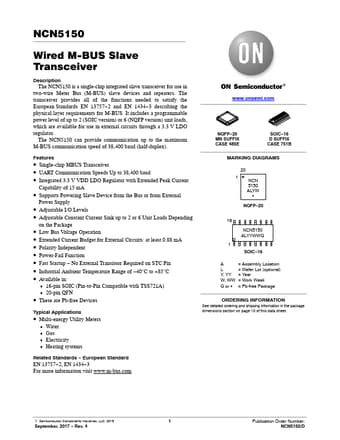

Preview of NCN5150 PDF
NCN5150 Datasheet Preview Page 2 NCN5150 Datasheet Preview Page 3

Datasheet Details

Part number:

NCN5150

Manufacturer:

ON Semiconductor ↗

File Size:

201.21 KB

Description:

Wired m-bus slave transceiver.
