NCN5192 HART Modem

ON Semiconductor

Description

DATA SHEET www.onsemi.com HART Modem NCN5192 .
The NCN5192 is a single. chip, CMOS modem for use in highway addressable remote transducer (HART) field instruments and masters.

📥 Download Datasheet

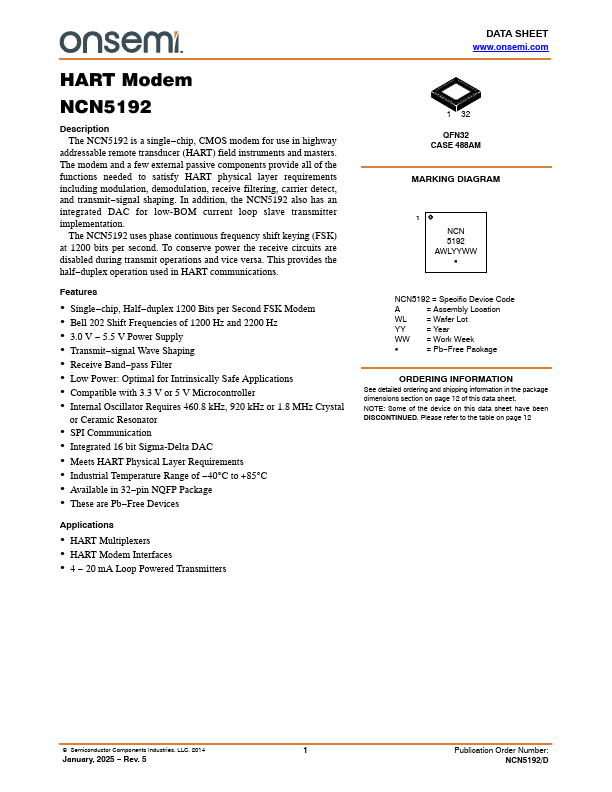

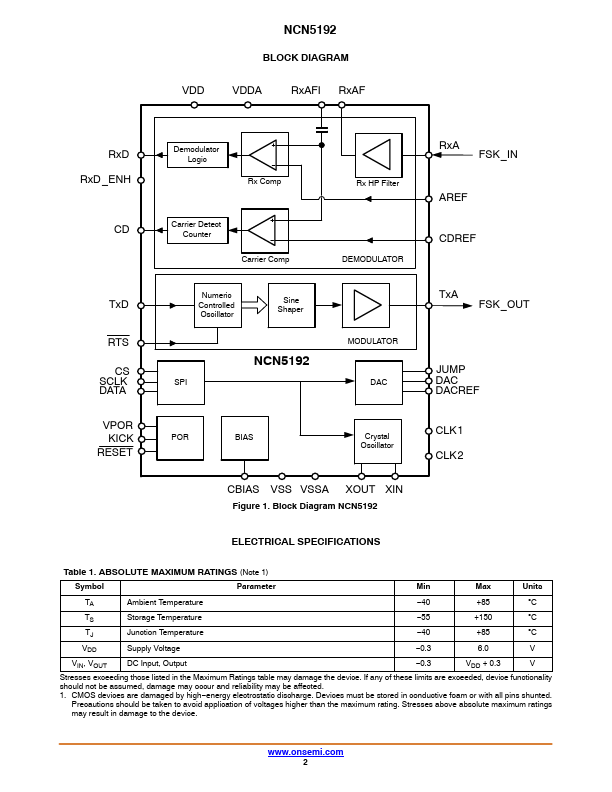

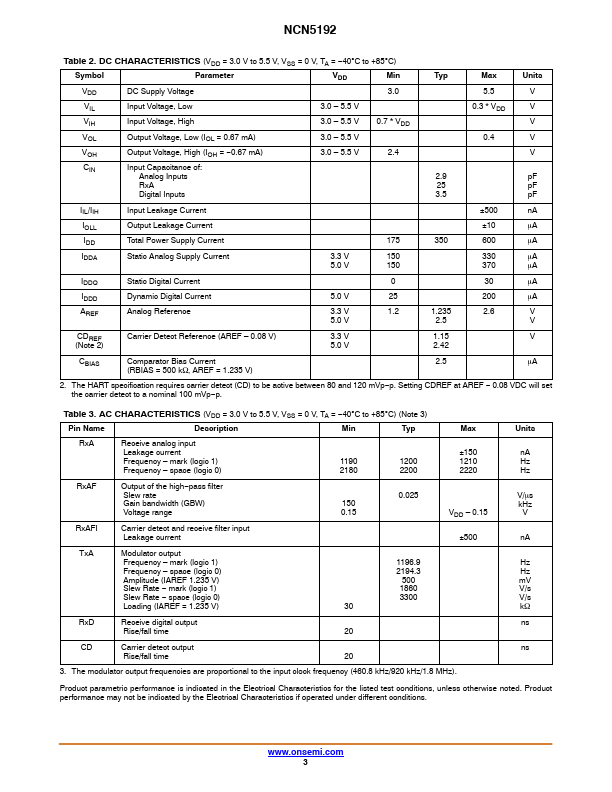

NCN5192 Datasheet Preview — Preview of NCN5192 PDF

Datasheet Specifications

Part number: NCN5192
Manufacturer: ON Semiconductor ↗
File Size: 341.05 KB
Datasheet: NCN5192_ONSemiconductor.pdf
Description: HART Modem

Features

* Single
* chip, Half
* duplex 1200 Bits per Second FSK Modem
* Bell 202 Shift Frequencies of 1200 Hz and 2200 Hz
* 3.0 V
* 5.5 V Power Supply
* Transmit
* signal Wave Shaping
* Receive Band
* pass Filter
* Low Power: Optimal for Intrinsically

Applications

* Compatible with 3.3 V or 5 V Microcontroller
* Internal Oscillator Requires 460.8 kHz, 920 kHz or 1.8 MHz Crystal or Ceramic Resonator
* SPI Communication
* Integrated 16 bit Sigma-Delta DAC
* Meets HART Physical Layer Requirements
* Industrial Temperature Range of
