NCN8025A, NCN8025 - Compact SMART CARD Interface IC

ON Semiconductor

NCN8025A Datasheet Preview — This datasheet PDF includes multiple part numbers: NCN8025A, NCN8025. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	NCN8025A, NCN8025
Manufacturer	ON Semiconductor ↗
File Size	297.36 KB
Description	Compact SMART CARD Interface IC
Datasheet	NCN8025-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: NCN8025A, NCN8025. Please refer to the document for exact specifications by model.

NCN8025A Product details

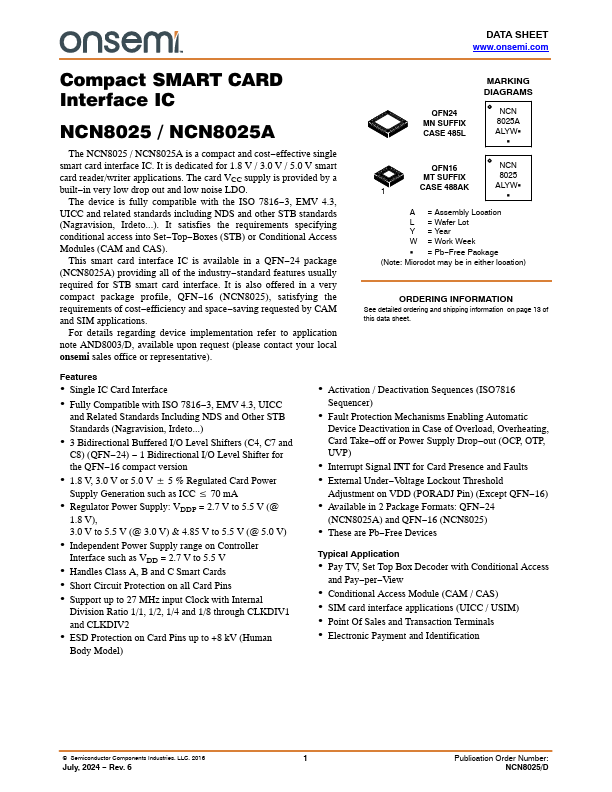

Description

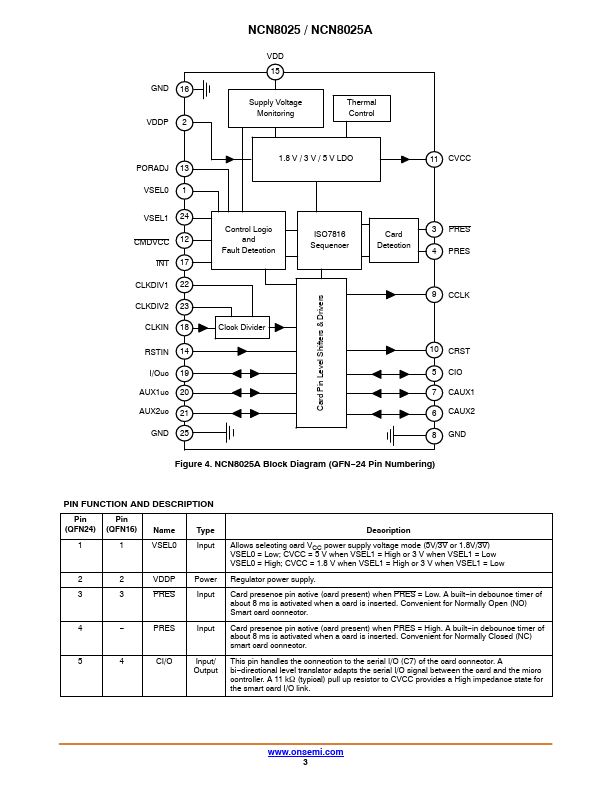

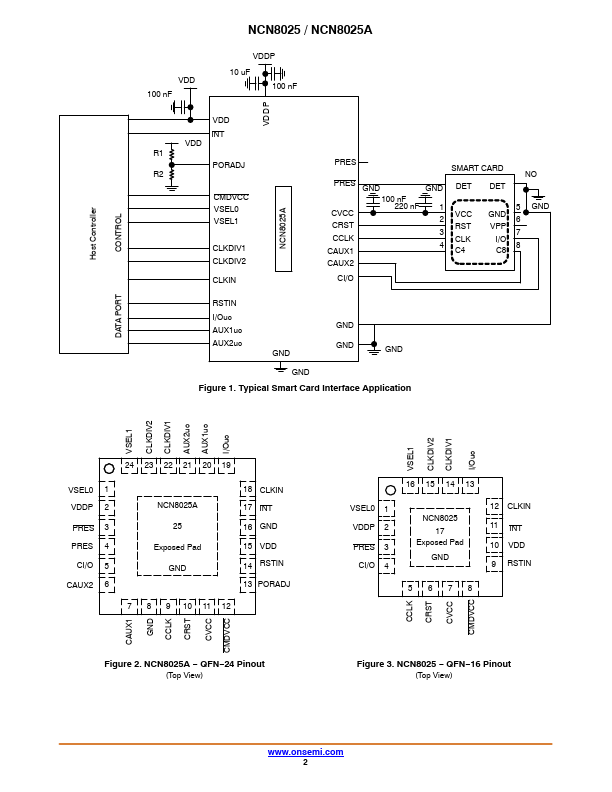

Pin Pin (QFN24) (QFN16) Name Type 1 1 VSEL0 Input 2 2 VDDP Power 3 3 PRES Input 4 PRES Input 5 4 CI/O Input/ Output Description Allows selecting card VCC power supply voltage mode (5V/3V or 1.8V/3V) VSEL0 = Low; CVCC = 5 V when VSEL1 = High or 3 V when VSEL1 = Low VSEL0 = High;

Features

usually required for STB smart card interface. It is also offered in a very compact package profile, QFN.
16 (NCN8025), satisfying the requirements of cost.
efficiency and space.
saving requested by CAM and SIM.
