NCP100 - Sub 1.0V Precision Adjustable Shunt Regulator

NCP100 Description

NCP100 Sub 1.0 V Precision Adjustable Shunt Regulator The NCP100 is a precision low voltage shunt regulator that is programmable over a voltage range .

NCP100 Features

* a guaranteed reference accuracy of ±1.7% at 25°C and ±2.6% over the entire temperature range of
* 40°C to 85°C. The NCP100 exhibits a sharp low current turn
* on characteristic with a low dynamic impedance of 0.20 W over an operating current range of 100 mA to 20 mA. These characteristi

NCP100 Applications

* Reference for Single Cell Alkaline, NiCD and NiMH Applications Low Output Voltage (2.3 V) Switching Power Supply Error Amp Battery Powered Consumer Products Portable Test Equipment and Instrumentation Cathode (K) Cathode (K) Reference (R) 0.7 V Anode (A) Anode (A) Device ORDERING INFORMATION Packa

📥 Download Datasheet

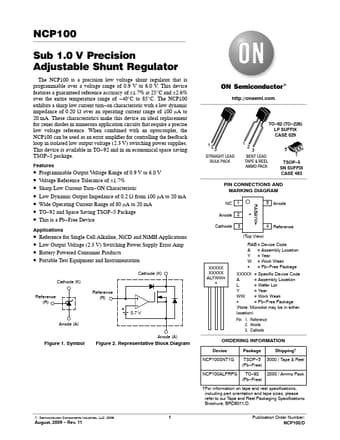

Preview of NCP100 PDF
