NCP110 Low Noise and High PSRR Linear Regulator

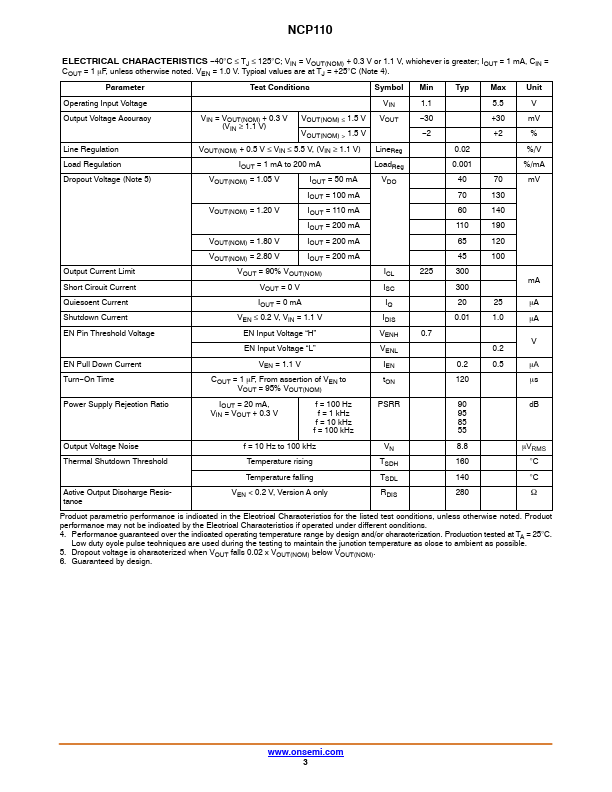

Pin No. CSP4 Pin No. XDFN4 Pin Name Description A1 4 IN Input voltage supply pin A2 1 OUT Regulated output voltage. The output should be bypassed with small 1 mF ceramic capacitor. B1 3 EN Chip enable: Applying VEN < 0.2 V disables the regulator, Pulling VEN > 0.7 V enables the LDO. .

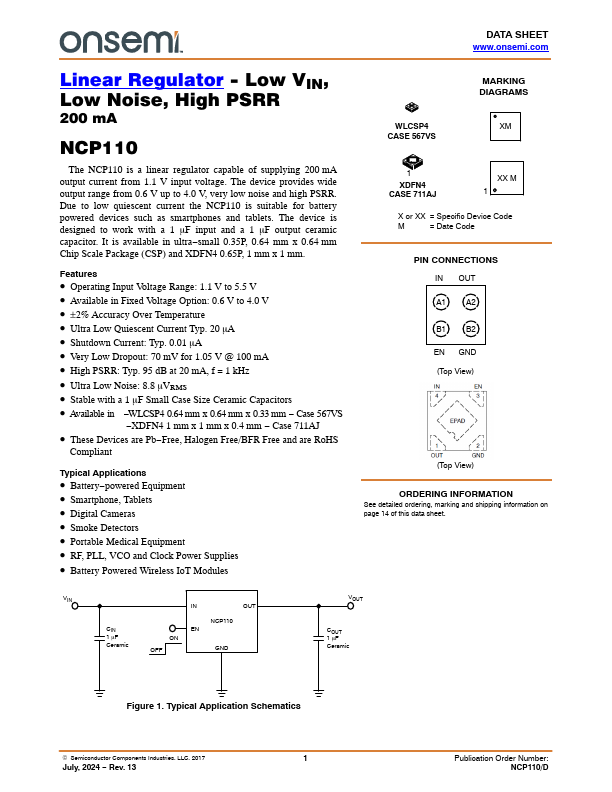

DATA SHEET www.onsemi.com Linear Regulator - Low VIN, Low Noise, High PSRR 200 mA NCP110 The NCP110 is a linear regulator capable of supplying 200 mA output current from 1.1 V input voltage. The device provides wide output range from 0.6 V up to 4.0 V, very low noise and high PSRR. Due to low quiescent current the NCP110 is suitable for battery powered devices such as smartphones and tablets. The device is designed to work with a 1 mF input and a 1 mF output ceramic capacitor. It is available i.

NCP110 Features

* Operating Input Voltage Range: 1.1 V to 5.5 V

* Available in Fixed Voltage Option: 0.6 V to 4.0 V

* ±2% Accuracy Over Temperature

* Ultra Low Quiescent Current Typ. 20 mA

* Shutdown Current: Typ. 0.01 mA

* Very Low Dropout: 70 mV for 1.05 V @ 100 mA

NCP110-ONSemiconductor.pdf
