NCP133 - Very Low Dropout Bias Rail CMOS Voltage Regulator

Pin No.

XDFN6 Pin Name Description 1 OUT Regulated Output Voltage pin 2 (Fixed) N/C Not internally connected (Note 1) 2 (Adj) ADJ Adjustable Regulator Feedback Input.

Connect to output voltage resistor divider central node.

3 EN Enable pin.

Driving this pin high enables the regulator.

NCP133 Features

* low IQ consumption. The XDFN6 1.2 mm x 1.2 mm package is optimized for use in space constrained applications. Features

* Input Voltage Range: 0.8 V to 5.5 V

* Bias Voltage Range: 2.4 V to 5.5 V

* Adjustable and Fixed Voltage Versions Available

* Output Voltage Range:

NCP133-ONSemiconductor.pdf

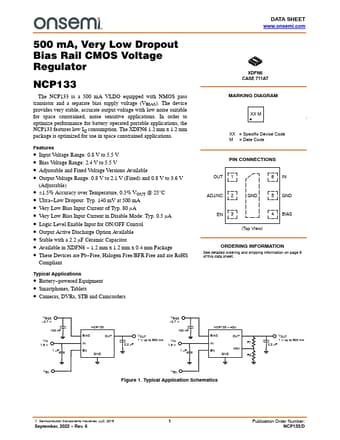

Preview of NCP133 PDF
