NCP1338

PWM Controller

NCP1338 Features

* an efficient protective circuitry which, in presence of an overcurrent condition, disables the output pulses and enters a safe burst mode, trying to restart. Once the default has gone, the device auto

* recovers. Also included is a bulk voltage monitoring function (known as brown

* out p

NCP1338 General Description

Pin No. Symbol Function 1 BO Brown

*out and external triggering 2 FB Sets the peak current setpoint 3 CS Current sense input and overpower compensation adjustment 4 GND IC ground 5 DRV Output driver 6 VCC IC supply 8 HV High

*voltage pin Description

NCP1338 Datasheet (254.05 KB)

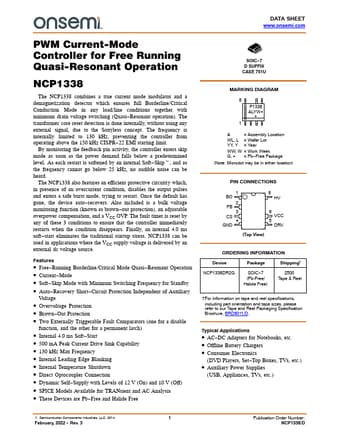

Preview of NCP1338 PDF

Datasheet Details

Part number:

NCP1338

Manufacturer:

ON Semiconductor ↗

File Size:

254.05 KB

Description:

Pwm controller.
DATA SHEET www.onsemi.com PWM Current-Mode Controller for Free Running Quasi-Resonant Operation NCP1338 The NCP1338 combines a true current mode modu.
