NCP1652A

High-Efficiency Single Stage Power Factor Correction

NCP1652A Features

* a proprietary Soft

* Skip™ to reduce acoustic noise at light loads. Other features found in the NCP1652 include a high voltage startup circuit, voltage feedforward, brown out detector, internal overload timer, latch input and a high accuracy multiplier. Features http://onsemi.com MARKING DIAGR

NCP1652A General Description

Pin 16 Pin 1 2 20 Pin 1 2 Symbol CT RAMP COMP Description An external timing capacitor (CT) sets the oscillator frequency. A sawtooth between 0.2 V and 4 V sets the oscillator frequency and the gain of the multiplier. A resistor (RRC) between this pin and ground adjust the amount of ramp compensatio.

NCP1652A Datasheet (346.05 KB)

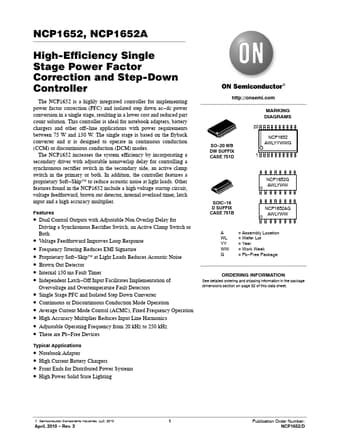

Preview of NCP1652A PDF

Datasheet Details

Part number:

NCP1652A

Manufacturer:

ON Semiconductor ↗

File Size:

346.05 KB

Description:

High-efficiency single stage power factor correction.
NCP1652, NCP1652A High-Efficiency Single Stage Power Factor Correction and Step-Down Controller The NCP1652 is a highly integrated controller for impl.
