NCP1651 - Single Stage Power Factor Controller

Pin No.

1 Function Output Description Drive output for power FET or IGBT.

Capable of driving small devices, or can be connected to an external driver for larger transistors.

2 Ground Ground reference for the circuit.

3 CT Timing capacitor for the internal oscillator.

This capacitor adjusts th

NCP1651 Single Stage Power Factor Controller The NCP1651 is an active, power factor correction controller that can operate over a wide range of input voltages.

It is designed for 50/60 Hz power systems.

It is a fixed frequency controller that can operate in continuous or discontinuous conduction modes.

The NCP1651 provides a low cost, low component count solution for isolated AC DC converters with mid high output voltage requirements.

The NCP1651 eases the task of meeting the IE

NCP1651 Features

* Fixed Frequency Operation

* Average Current Mode PWM

* Internal High Voltage Startup Circuit

* Continuous or Discontinuous Mode Operation

* High Accuracy Multiplier

* Overtemperature Shutdown

* External Shutdown

* Undervoltage Lockout

NCP1651_ONSemiconductor.pdf

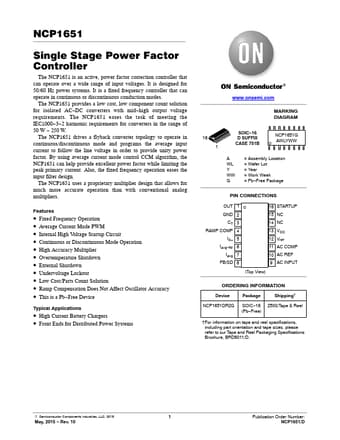

Preview of NCP1651 PDF
