NCP302040

Integrated Driver and MOSFET

NCP302040 Features

* Capable of Average Currents up to 40 A

* Capable of Switching at Frequencies up to 2 MHz

* Capable of Peak Currents up to 75 A

* Compatible with 3.3 V or 5 V PWM Input

* Responds Properly to 3-level PWM Inputs

* Option for Zero Cross Detection with 3

NCP302040 General Description

The NCP302040 integrates a MOSFET driver, high-side MOSFET and low-side MOSFET into a single package. The driver and MOSFETs have been optimized for high-current DC

*DC buck power conversion applications. The NCP302040 integrated solution greatly reduces package parasitics and board space com.

NCP302040 Datasheet (660.78 KB)

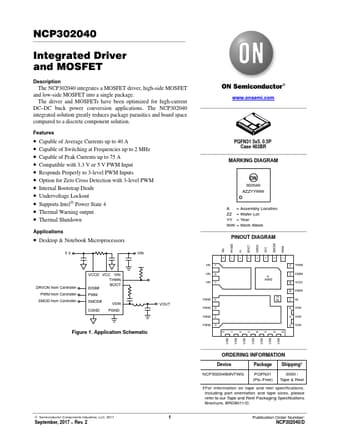

Preview of NCP302040 PDF
