NCP302150 Datasheet - ON Semiconductor

NCP302150 - Integrated Driver/MOSFET

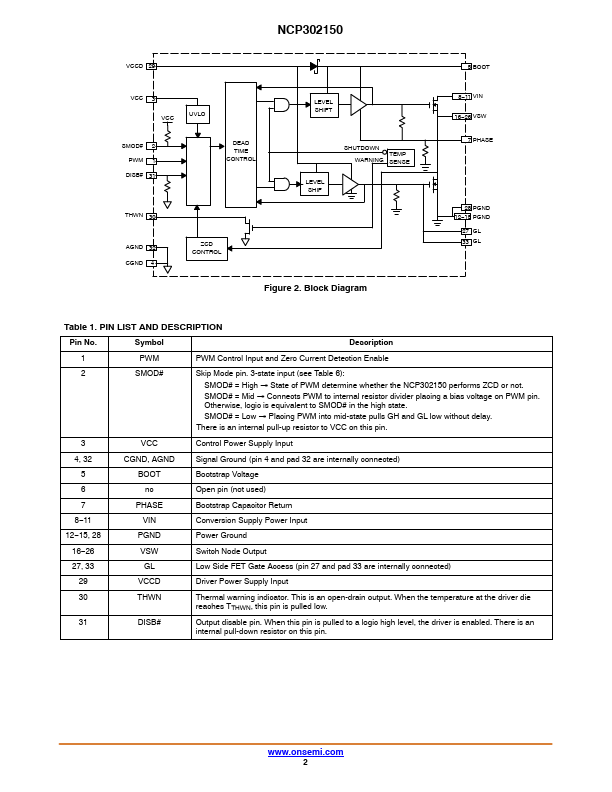

Pin No.

Symbol Description 1 PWM PWM Control Input and Zero Current Detection Enable 2 SMOD# Skip Mode pin.

3 *state input (see Table 6): SMOD# = High ³ State of PWM determine whether the NCP302150 performs ZCD or not.

SMOD# = Mid ³ Connects PWM to internal resistor divider placing

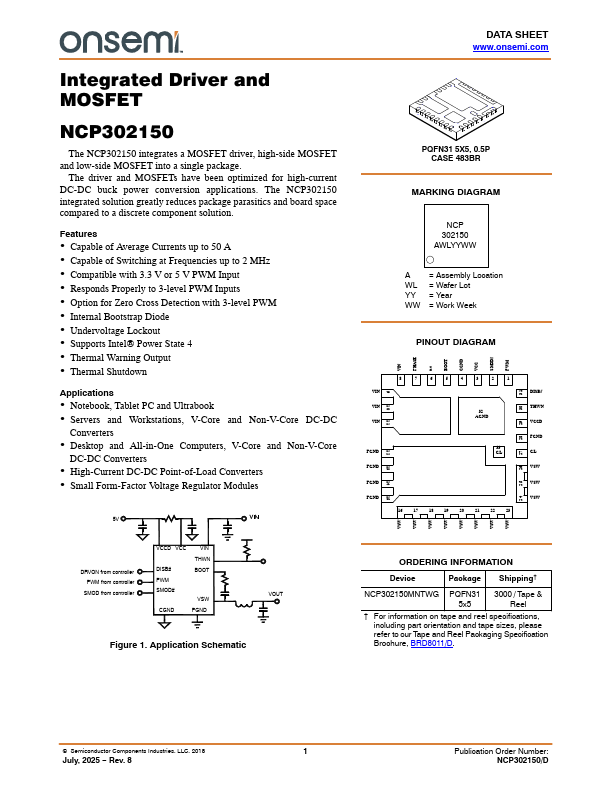

NCP302150 Features

* Capable of Average Currents up to 50 A

* Capable of Switching at Frequencies up to 2 MHz

* Compatible with 3.3 V or 5 V PWM Input

* Responds Properly to 3

* level PWM Inputs

* Option for Zero Cross Detection with 3

* level PWM

* Internal

Datasheet Details

NCP302150

899.53 KB

Integrated driver/mosfet.
