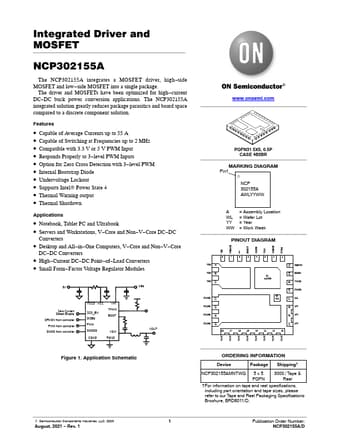

NCP302155A - Integrated Driver/MOSFET

ON Semiconductor

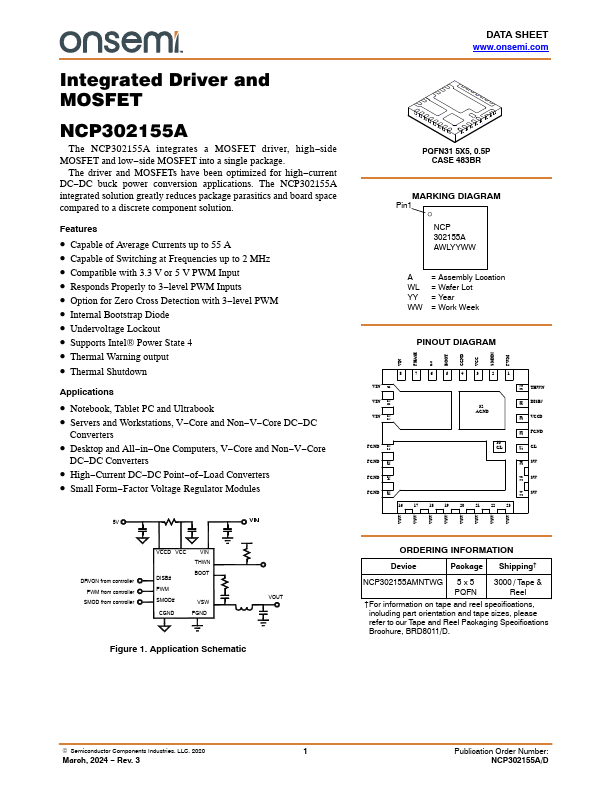

NCP302155A Datasheet Preview — Preview of NCP302155A PDF

Datasheet Details

Part number	NCP302155A
Manufacturer	ON Semiconductor ↗
File Size	719.27 KB
Description	Integrated Driver/MOSFET
Datasheet	NCP302155A-ONSemiconductor.pdf

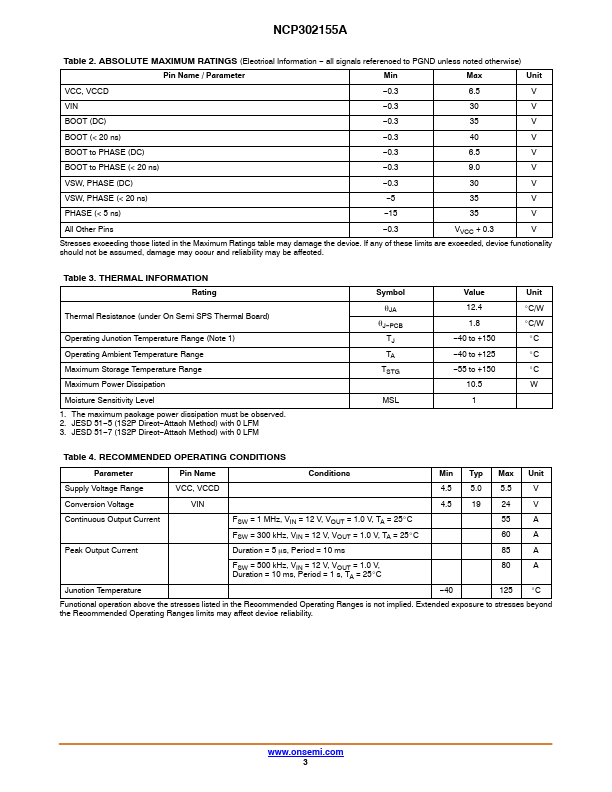

NCP302155A Product details

Description

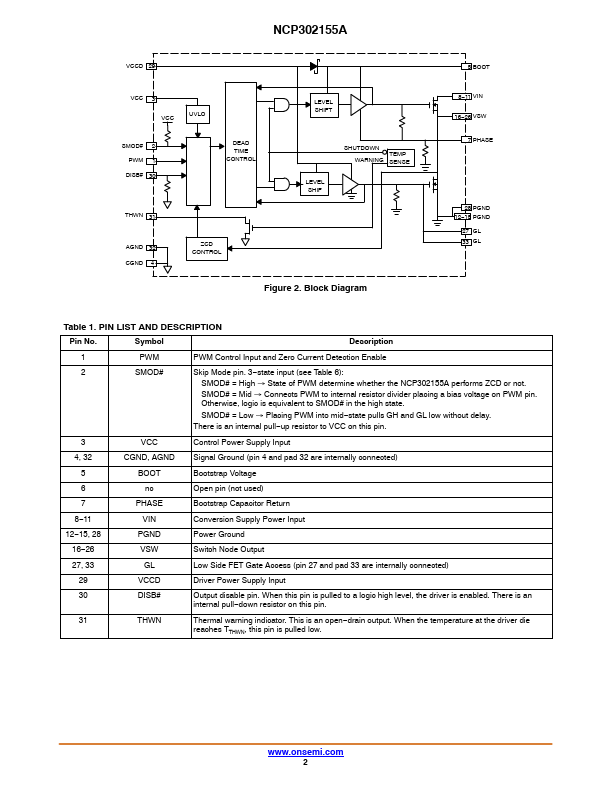

Pin No. state input (see Table 6): SMOD# = High ³ State of PWM determine whether the NCP302155A performs ZCD or not.SMOD# = Mid ³ Connects PWM to internal resistor divider placing a bias voltage on PWM pin.Otherwise, logic is equivalent to SMOD# in the high state.SMOD# = Low ³ Placing PWM into mid state pulls GH and GL low without delay.

Features

Capable of Average Currents up to 55 A.
Capable of Switching at Frequencies up to 2 MHz.
Compatible with 3.3 V or 5 V PWM Input.
Responds Properly to 3.
level PWM Inputs.
Option for Zero Cross Detection with 3.
level PWM.
Internal Bootstrap Diode.
Undervoltage Lockout.
Supports Intel® Power State 4.
Thermal Warning output.
Thermal Shutdown.
