NCP302155 - Integrated Driver and MOSFET

ON Semiconductor

📥 Download Datasheet

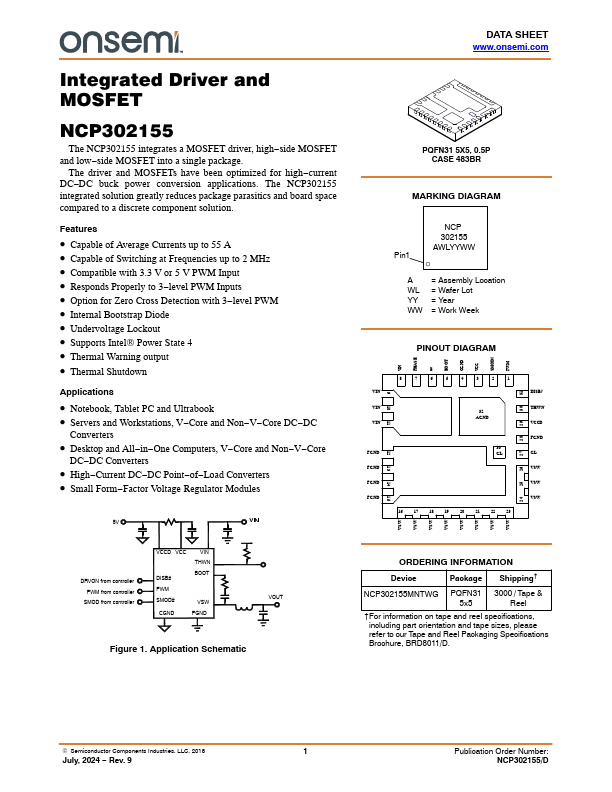

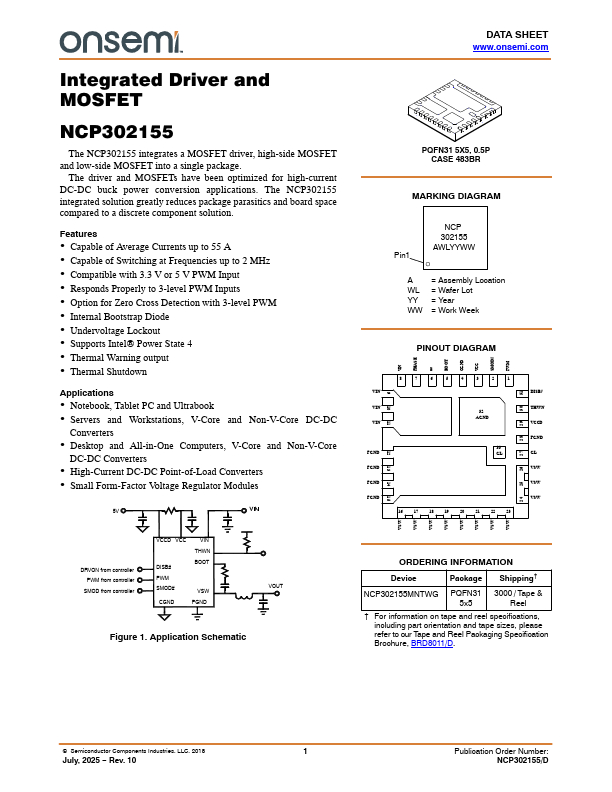

NCP302155 Datasheet Preview — Preview of NCP302155 PDF

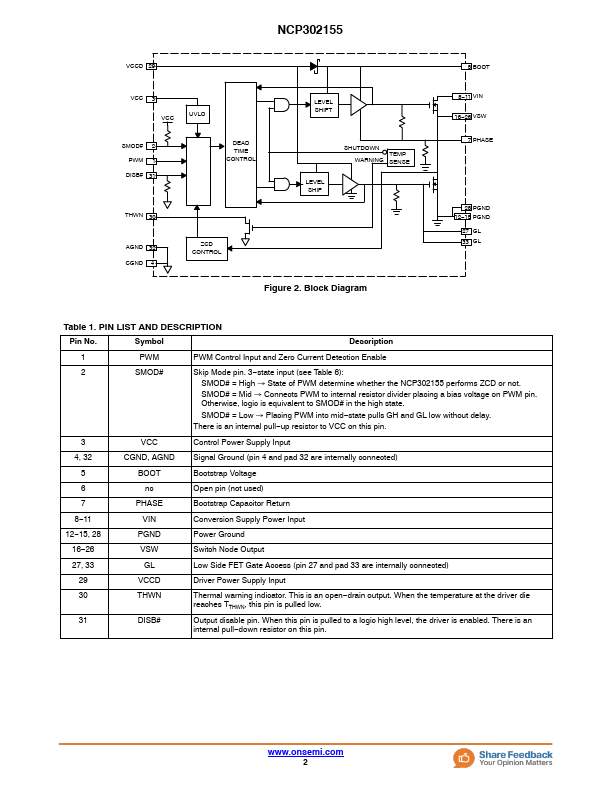

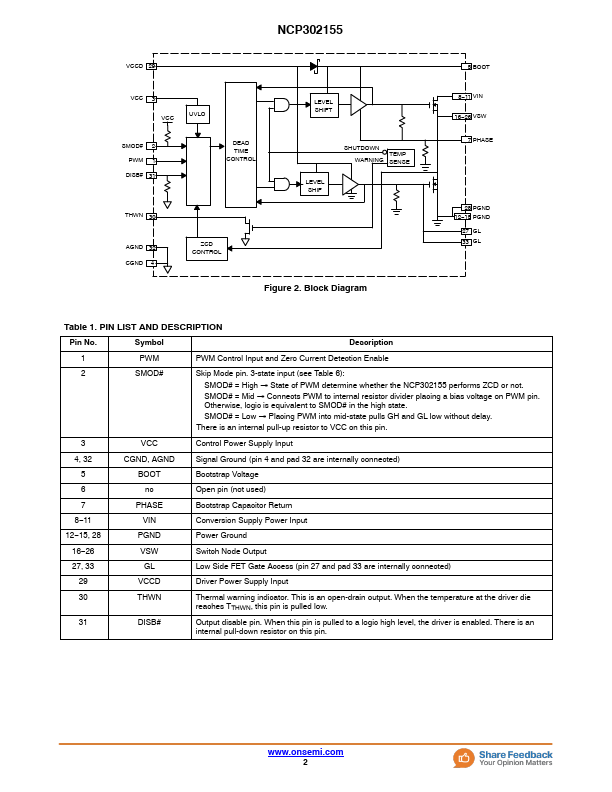

datasheet Preview Page 2

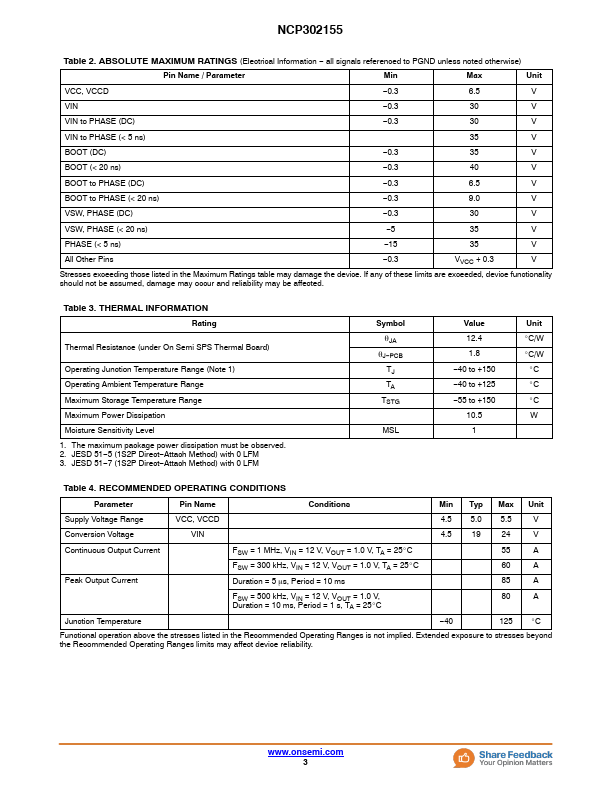

datasheet Preview Page 3

Datasheet Details

Part number	NCP302155
Manufacturer	ON Semiconductor ↗
File Size	880.72 KB
Description	Integrated Driver and MOSFET
Datasheet	NCP302155-ONSemiconductor.pdf

NCP302155 Product details

Description

Pin No.

Features

Capable of Average Currents up to 55 A.
Capable of Switching at Frequencies up to 2 MHz.
Compatible with 3.3 V or 5 V PWM Input.
Responds Properly to 3-level PWM Inputs.
Option for Zero Cross Detection with 3-level PWM.
Internal Bootstrap Diode.
Undervoltage Lockout.
Supports Intel Power State 4.
Thermal Warning output.
Thermal Shutdown.
