NCP302160R - Integrated Driver and MOSFET

Datasheet Summary

Description

Pin No.

Output disable pin.

High = Enabled with normal PWM operation without ZCD.

Features

  • Capable of Average Currents up to 60 A.
  • Capable of Peak Currents up to 80 A.
  • Capable of Switching at Frequencies up to 2 MHz.
  • Compatible with 3.3 V or 5 V PWM Input.
  • Responds Properly to 3.
  • level PWM Inputs.
  • Internal Bootstrap Diode.
  • Undervoltage Lockout.
  • Supports Intel® Power State 4.
  • Thermal Warning output.

📥 Download Datasheet

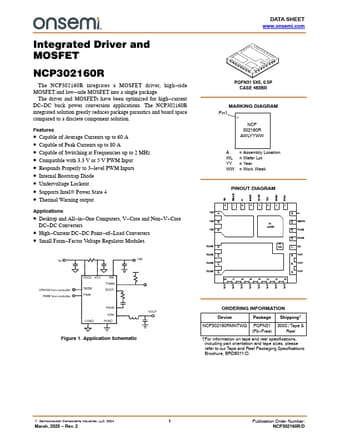

Datasheet preview – NCP302160R

Datasheet Details

Part number NCP302160R
Manufacturer ON Semiconductor
File Size 815.71 KB
Description Integrated Driver and MOSFET
Datasheet download datasheet NCP302160R Datasheet
Additional preview pages of the NCP302160R datasheet.

📁 Similar Datasheet

Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
Integrated Driver and MOSFET NCP302160R The NCP302160R integrates a MOSFET driver, high−side MOSFET and low−side MOSFET into a single package. The driver and MOSFETs have been optimized for high−current DC−DC buck power conversion applications. The NCP302160R integrated solution greatly reduces package parasitics and board space compared to a discrete component solution. Features • Capable of Average Currents up to 60 A • Capable of Peak Currents up to 80 A • Capable of Switching at Frequencies up to 2 MHz • Compatible with 3.
