NCP612

CMOS Low Iq Voltage Regulator

NCP612 Features

* an ultra

* low quiescent current of 40 mA. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits. The NCP612/NCV612 has been designed to be used with low cost ce

NCP612 General Description

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁPinNo. PinName Description ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ1 Vin Positive power supply input voltage. ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ2 Gnd Power supply ground. ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ3 Enable This input is used to place the device into low

.

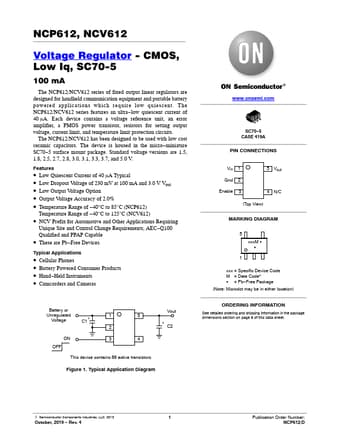

NCP612 Datasheet (134.49 KB)

Preview of NCP612 PDF

Datasheet Details

Part number:

NCP612

Manufacturer:

ON Semiconductor ↗

File Size:

134.49 KB

Description:

Cmos low iq voltage regulator.
NCP612, NCV612 Voltage Regulator - CMOS, Low Iq, SC70-5 100 mA The NCP612/NCV612 series of fixed output linear regulators are designed for handheld c.
