NCP6132 Dual Output 3 Phase & 2 Phase Controller

NCP6132 Dual Output 3 Phase & 2 Phase Controller with single SVID Interface for Desktop and Notebook CPU Applications The NCP6132 dual output three plus two phase buck solution is optimized for Intel IMVPï7 and VR12 compatible CPUs. The controller combines true differential voltage sensing, differential inductor DCR current sensing, input voltage feedïforward, and adaptive voltage positioning to provide accurately regulated power for both Desktop and Notebook applications. The control system is .

NCP6132 Features

* http://onsemi.com MARKING DIAGRAM 1 1 60 QFN60 CASE 485BB A WL YY WW G NCP6132 AWLYYWWG = Assembly Location = Wafer Lot = Year = Work Week = PbïFree Package

* Meets Intel’s VR12/IMVP7 Specifications

* Three phase CPU voltage regulator with two internal MOSFET

NCP6132 Datasheet (84.41 KB)

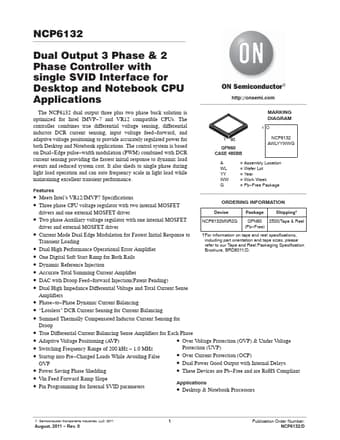

Preview of NCP6132 PDF
