NCP6133

Dual Output 1/2/3 Phase +1/0 Phase Controller

NCP6133 Features

* Meets Intel VR12/IMVP7 Specifications

* Current Mode Dual Edge Modulation for Fastest Initial Response to Transient Loading

* Dual High Performance Operational Error Amplifier

* One Digital Soft Start Ramp for Both Rails

* Dynamic Reference Injection

NCP6133 General Description

Pin No. Symbol Description 1 VSP Non

*inverting input to the core differential remote sense amplifier. 2 TSENSE Temp Sense input for the multiphase converter 3 VR_HOT# Thermal logic output for over temperature. 4 SDIO Serial VID data interface. 5 SCLK Serial VID clock. 6 ALE.

NCP6133 Datasheet (555.57 KB)

Preview of NCP6133 PDF

Datasheet Details

Part number:

NCP6133

Manufacturer:

ON Semiconductor ↗

File Size:

555.57 KB

Description:

Dual output 1/2/3 phase +1/0 phase controller.

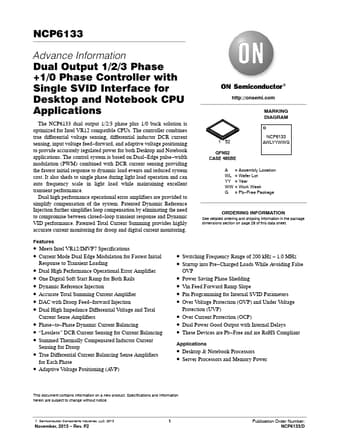

NCP6133 Advance Information Dual Output 1/2/3 Phase +1/0 Phase Controller with Single SVID Interface for Desktop and Notebook CPU Applications The NC.
