NCP81042

Precise Low Voltage Synchronous Buck Controller

NCP81042 Features

* also include soft

* start sequence, accurate overvoltage and over current protection, UVLO for VCC and VCCP, and thermal shutdown. Features

* High Performance Operational Error Amplifier

* Internal Soft

* Start/Stop

* ±0.5% Internal Voltage Accuracy, 0.8 V voltage

NCP81042 General Description

Pin No. Symbol 1 VCCP 2 LG 3 LX 4 BOOT 5 UG 6 PGOOD 7 SYNC 8 COMP 9 FB 10 VSEN 11 FBG 12 CSN/VO 13 CSP 14 ROSC/EN 15 VCC 16 GND THERMAL PAD Description Power supply for bottom gate MOSFET drivers Bottom gate MOSFET driver pin Switch node Supply rail for the float.

NCP81042 Datasheet (189.47 KB)

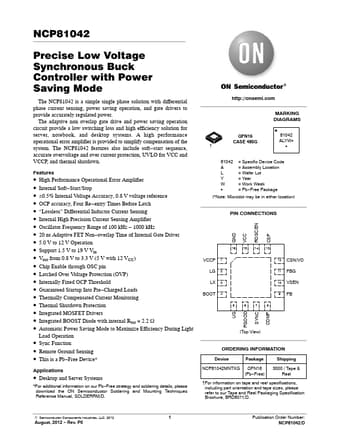

Preview of NCP81042 PDF

Datasheet Details

Part number:

NCP81042

Manufacturer:

ON Semiconductor ↗

File Size:

189.47 KB

Description:

Precise low voltage synchronous buck controller.
NCP81042 Precise Low Voltage Synchronous Buck Controller with Power Saving Mode The NCP81042 is a simple single phase solution with differential phas.
