NCP81045

Single Synchronous Step-Down Controller

NCP81045 Features

* soft

* start sequence, UVLO for VCC and switcher, overvoltage protection, overcurrent protection, undervoltage protection and thermal shutdown. The IC is packaged in QFN16. Features

* 0.8% accuracy 0.8 V Reference

* 4.5 V to 27 V Battery/Adaptor Voltage Range

* Adjustab

NCP81045 General Description

Pin No. Symbol Description 1 VIN Input voltage used for feed forward in switcher operation. 2 VCC Supply for analog circuit 3 SYN Synchronization interleaving use. 4 EN This pin serves as two functions. Enable: Logic control for enabling the switcher. MASTER/SLAVE: To program the device a.

NCP81045 Datasheet (300.74 KB)

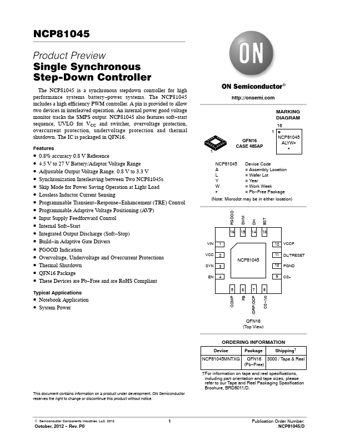

Preview of NCP81045 PDF

Datasheet Details

Part number:

NCP81045

Manufacturer:

ON Semiconductor ↗

File Size:

300.74 KB

Description:

Single synchronous step-down controller.
NCP81045 Product Preview Single Synchronous Step-Down Controller The NCP81045 is a synchronous stepdown controller for high performance systems batte.
