NCP81046

Low Voltage Synchronous Buck Controller

NCP81046 Features

* include a 1.5 A gate driver design and an internally set 300 kHz oscillator. In addition to the 1.5 A gate drive capability, other efficiency enhancing features of the gate driver include adaptive non

* overlap circuitry. The NCP81046 also incorporates an externally compensated error amplifier

NCP81046 General Description

Pin No. Symbol Description 1 BOOT Supply rail for the floating top gate driver. To form a boost circuit, use an external diode to bring the desired input voltage to this pin (cathode connected to BOOT pin). Connect a capacitor (CBOOT) between this pin and the LX pin. Typical values for CBOOT r.

NCP81046 Datasheet (246.28 KB)

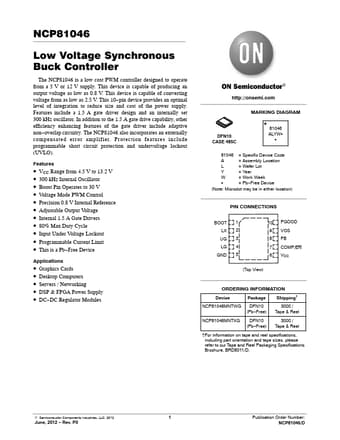

Preview of NCP81046 PDF

Datasheet Details

Part number:

NCP81046

Manufacturer:

ON Semiconductor ↗

File Size:

246.28 KB

Description:

Low voltage synchronous buck controller.
NCP81046 Low Voltage Synchronous Buck Controller The NCP81046 is a low cost PWM controller designed to operate from a 5 V or 12 V supply. This device.
