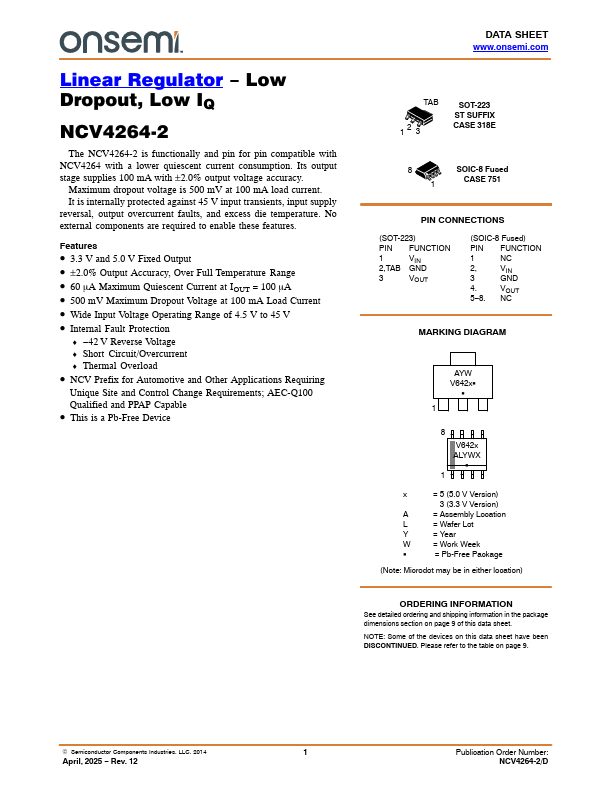

NCV4264-2 - Low Dropout Linear Regulator

ON Semiconductor

NCV4264-2 Datasheet Preview — Preview of NCV4264-2 PDF

Datasheet Details

Part number	NCV4264-2
Manufacturer	ON Semiconductor ↗
File Size	271.94 KB
Description	Low Dropout Linear Regulator
Datasheet	NCV4264-2-ONSemiconductor.pdf

NCV4264-2 Product details

Description

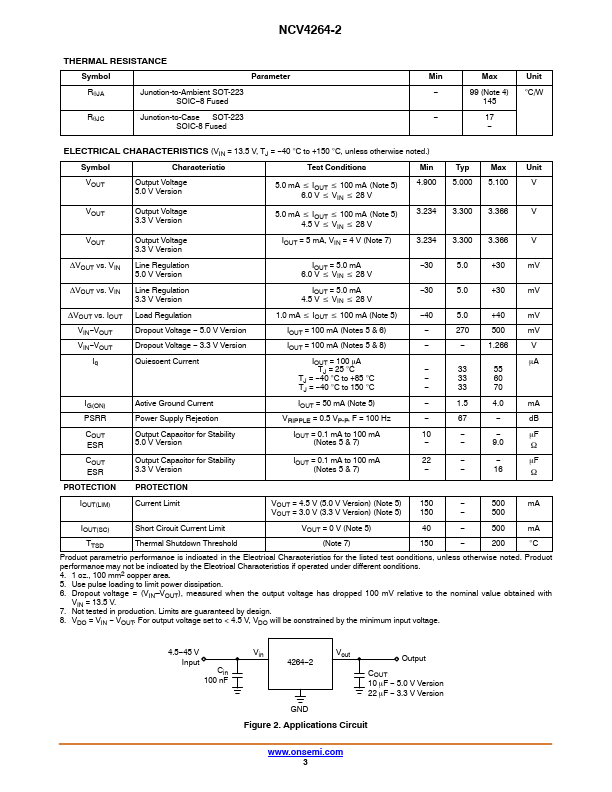

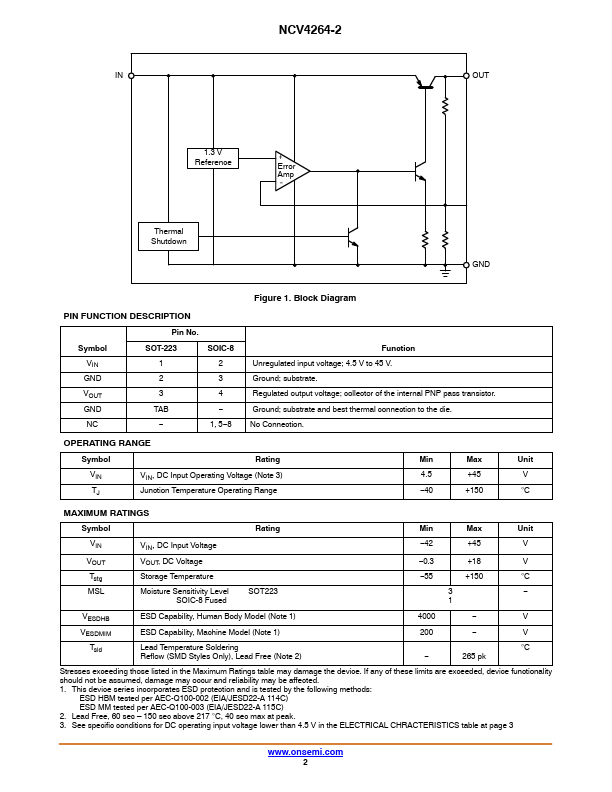

Pin No. NC 1, 5 8 Function Unregulated input voltage; 4.5 V to 45 V.Ground; substrate.Regulated output voltage; collector of the internal PNP pass transistor.Ground; substrate and best thermal connection to the die.No Connection.OPERATING RANGE Symbol Rating VIN VIN, DC Input Operating Voltage (Note 3) TJ Junction Temperature Operating Range Min Max Unit 4.5 +45 V 40

Features

Features.
3.3 V and 5.0 V Fixed Output.
±2.0% Output Accuracy, Over Full Temperature Range.
60 mA Maximum Quiescent Current at IOUT = 100 mA.
500 mV Maximum Dropout Voltage at 100 mA Load Current.
Wide Input Voltage Operating Range of 4.5 V to 45 V.
Internal Fault Protection.
42 V Reverse Voltage.
Short Circuit/Overcurrent.
Thermal Overload.
NCV Prefix for Automotive and Other.
