NCV5702

High Current IGBT Gate Driver

NCV5702 Features

* include Active Miller Clamp, accurate UVLO, EN input, DESAT protection and Active open

* drain FAULT output. The driver also features an accurate 5.0 V output and separate high and low (VOH and VOL) driver outputs for system design convenience. The driver is designed to accommodate a wide volt

NCV5702 General Description

Pin Name No. I/O/x Description EN 1 I Enable input allows additional gating of VOH and VOL, and can be used when the driver output needs to be turned off independent of the Microcontroller input. EN is internally clamped to 5 V and has a pull

*up resistor of 1 MW. VIN 2 I Input sig.

NCV5702 Datasheet (658.20 KB)

Preview of NCV5702 PDF

Datasheet Details

Part number:

NCV5702

Manufacturer:

ON Semiconductor ↗

File Size:

658.20 KB

Description:

High current igbt gate driver.
NCV5702 High Current IGBT Gate Driver The NCV5702 is a high

*current, high

*performance stand

*alone IGBT driver for high power.

📁 Related Datasheet

NCV5700 - High Current IGBT Gate Driver (ON Semiconductor)
NCV5700 High Current IGBT Gate Driver The NCV5700 is a high−current, high−performance stand−alone IGBT driver for high power applications that inclu.

NCV57000 - IGBT (ON Semiconductor)
DATA SHEET .onsemi. Isolated High Current IGBT Gate Driver NCV57000 NCV57000 is a high−current single channel IGBT driver with internal galvani.

NCV57001 - IGBT Gate Driver (ON Semiconductor)
DATA SHEET .onsemi. Isolated High Current IGBT Gate Driver NCV57001 NCV57001 is a high−current single channel IGBT driver with internal galvani.

NCV57001F - IGBT Gate Driver (ON Semiconductor)
Isolated High Current IGBT Gate Driver NCV57001F NCV57001F is a variant of NCV57001 with reduced Soft−Turn−Off time suited to drive large IGBTs or pow.

NCV5701A - High Current IGBT Gate Drivers (ON Semiconductor)
DATA SHEET .onsemi. High Current IGBT Gate Drivers NCV5701A, NCV5701B, NCV5701C The NCV5701A, NCV5701B and NCV5701C are high−current, high−perf.

NCV5701B - High Current IGBT Gate Drivers (ON Semiconductor)
DATA SHEET .onsemi. High Current IGBT Gate Drivers NCV5701A, NCV5701B, NCV5701C The NCV5701A, NCV5701B and NCV5701C are high−current, high−perf.

NCV5701C - High Current IGBT Gate Drivers (ON Semiconductor)
DATA SHEET .onsemi. High Current IGBT Gate Drivers NCV5701A, NCV5701B, NCV5701C The NCV5701A, NCV5701B and NCV5701C are high−current, high−perf.

NCV5703A - High Current IGBT Gate Drivers (ON Semiconductor)
DATA SHEET .onsemi. High Current IGBT Gate Drivers NCx5703y (x = D or V, y = A, B, C or D) The NCx5703y are high−current, high−performance stan.

TAGS

NCV5702 High Current IGBT Gate Driver ON Semiconductor

Image Gallery

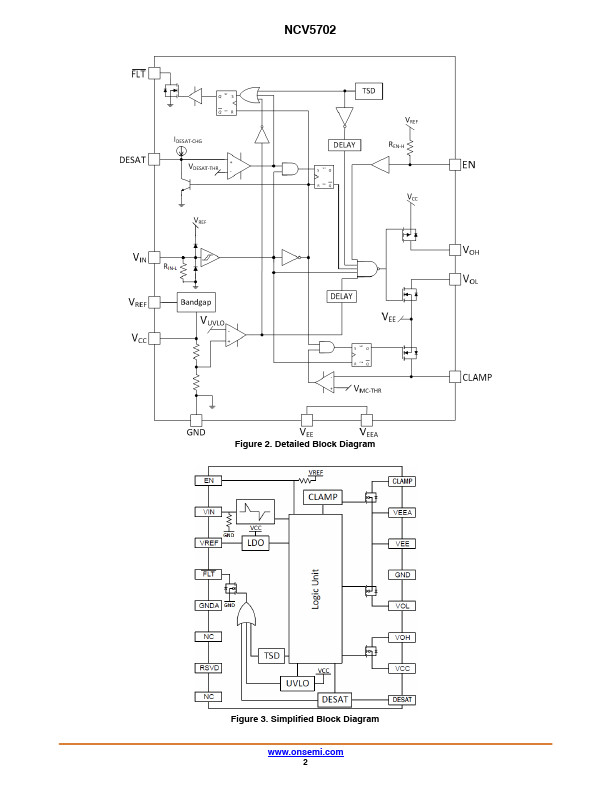

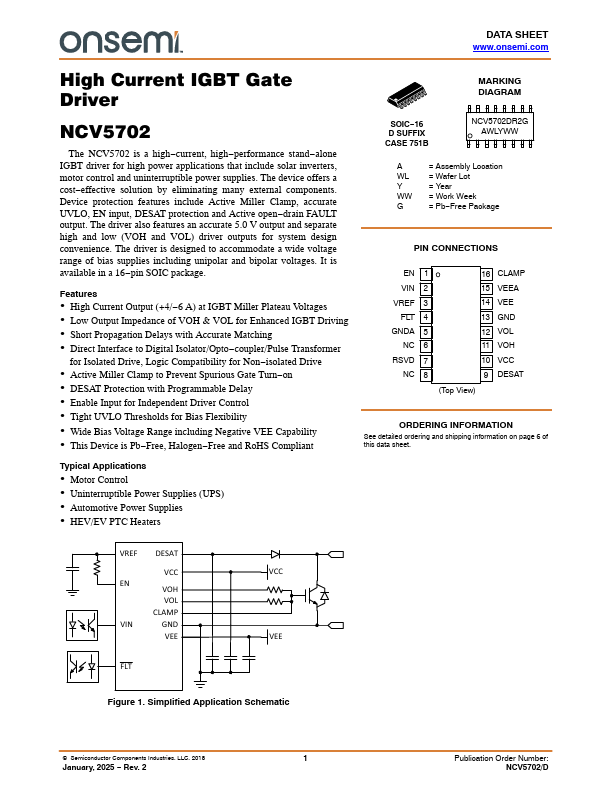

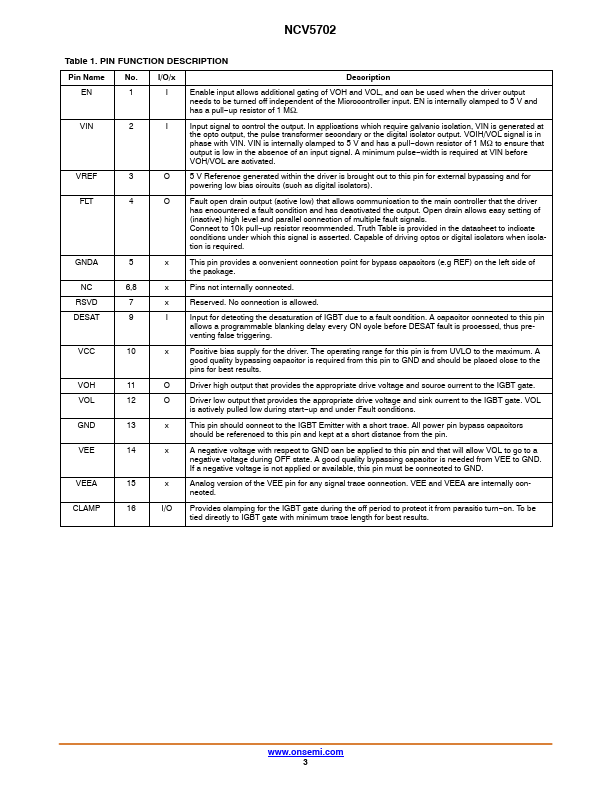

NCV5702 Datasheet Preview Page 2 NCV5702 Datasheet Preview Page 3
