NCV7383 Datasheet - ON Semiconducto

NCV7383 Transceiver

Pin Number Pin Name Pin Type 1 VIO supply 2 TxD digital input, internal PD 3 TxEN digital input, internal PU 4 RxD digital output 5 BGE digital input, internal PD 6 STBN digital input, internal PD 7 SCK digital input, internal PU 8 SDO digital output 9 CSN digital input.

NCV7383 FlexRay) Transceiver, Clamp 15 NCV7383 is a single channel FlexRay bus driver compliant with the FlexRay Electrical Physical Layer Specification Rev. 3.0.1, capable of communicating at speeds of up to 10 Mbit/s. It provides differential transmit and receive capability between a wired FlexRay communication medium on one side and a protocol controller and a host on the other side. NCV7383 mode control functionality is optimized for nodes without the need of extended power manageme.

NCV7383 Features

* General

* Compliant with FlexRay Electrical Physical Layer Specification Rev 3.0.1

* FlexRay Transmitter and Receiver in Normal

* Power Modes for Communication up to 10 Mbit/s

* Support of 60 ns Bit Time

* FlexRay Low

* Power Mode Receiver for Remote Wakeu

NCV7383-ONSemiconductor.pdf

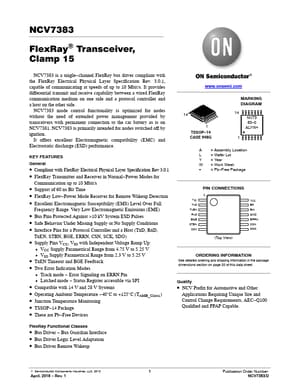

NCV7383 Datasheet Preview — Preview of NCV7383 PDF

Datasheet Details

Part number:

NCV7383

Manufacturer:

ON Semiconducto

File Size:

302.81 KB

Description:

Transceiver.
