NCV7518 Hex Low side MOSFET Pre driver

32 PIN QFN EXPOSED PAD PACKAGE Label Description FLTREF Analog Fault Detect Threshold: 5 V Compliant DRN0 * DRN5 Analog Drain Feedback GAT0 * GAT5 Analog Gate Drive: 5 V Compliant RSTB Digital Master Reset Input: 3.3 V/5 V (TTL) Compatible ENB Digital Master Enable Input: .

NCV7518 FLEXMOS] Hex Low‐side MOSFET Pre‐driver The NCV7518 programmable six channel low-side MOSFET pre-driver is one of a family of FLEXMOS automotive grade products for driving logic-level MOSFETs. The product is controllable by a combination of serial SPI and parallel inputs. The device offers 3.3 V/ 5 V compatible inputs and the serial output driver can be powered from either 3.3 V or 5 V. An internal power-on reset provides controlled power up. A reset input allows external re-initializa.

NCV7518 Features

* 16-bit SPI with Parity and Frame Error Detection

* 3.3 V/5 V Compatible Parallel and Serial Control Inputs

* 3.3 V/5 V Compatible Serial Output Driver

* Reset and Enable Inputs

* Open-drain Fault Flag

* Priority Encoded Diagnostics with Latched Uniqu

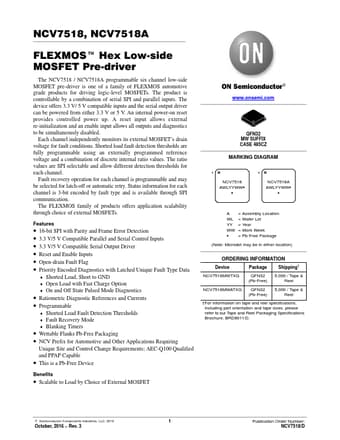

NCV7518 Datasheet (461.20 KB)

NCV7518 Datasheet Preview — Preview of NCV7518 PDF

Datasheet Details

Part number:

NCV7518

Manufacturer:

ON Semiconducto

File Size:

461.20 KB

Description:

Hex low side mosfet pre driver.
