NCV7513 - Hex Low Side MOSFET Pre-Driver

ON Semiconductor

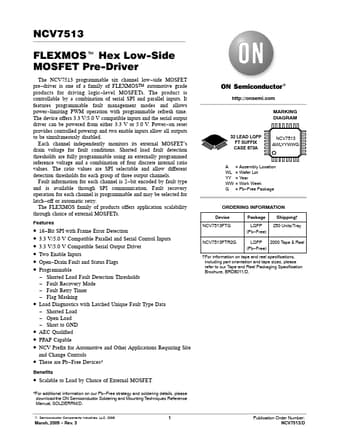

NCV7513 Datasheet Preview — Preview of NCV7513 PDF

Datasheet Details

Part number	NCV7513
Manufacturer	ON Semiconductor ↗
File Size	269.52 KB
Description	Hex Low Side MOSFET Pre-Driver
Datasheet	NCV7513_ONSemiconductor.pdf

NCV7513 Product details

Description

Symbol Description FLTREF Analog Fault Detect Threshold: 5.0 V Compliant DRN0 DRN5 Analog Drain Feedback: Internally Clamped GAT0 GAT5 Analog Gate Drive: 5.0 V Compliant ENA1, ENA2 Digital Master Enable Inputs: 3.3 V/5.0 V (TTL) Compatible IN0 IN5 Digital Parallel Input: 3.3 V/5.0 V (TTL) Compatible CSB Digital Chip Select Input: 3.3 V/5.0 V (TTL) Compatible SCLK Digital Shift Clock Input: 3.3 V/5.0 V (TTL) Compatible SI Digital Serial Data Input:

Features

programmable fault management modes and allows power.
limiting PWM operation with programmable refresh time. The device offers 3.3 V/5.0 V compatible inputs and the serial output driver can be powered from either 3.3 V or 5.0 V. Power.
on reset provides controlled powerup and two enable inputs allow all outputs to be simultaneously disabled. Each channel independently monitors its external MOSFET’s drain voltage for fault conditions. Shorted load fault detection thresholds are full.
