NCV7518A - Hex Low side MOSFET Pre driver

32 PIN QFN EXPOSED PAD PACKAGE Label Description FLTREF Analog Fault Detect Threshold: 5 V Compliant DRN0 * DRN5 Analog Drain Feedback GAT0 * GAT5 Analog Gate Drive: 5 V Compliant RSTB Digital Master Reset Input: 3.3 V/5 V (TTL) Compatible ENB Digital Master Enable Input:

NCV7518, NCV7518A FLEXMOS] Hex Low‐side MOSFET Pre‐driver The NCV7518 / NCV7518A programmable six channel low-side MOSFET pre-driver is one of a family of FLEXMOS automotive grade products for driving logic-level MOSFETs.

The product is controllable by a combination of serial SPI and parallel inputs.

The device offers 3.3 V/ 5 V compatible inputs and the serial output driver can be powered from either 3.3 V or 5 V.

An internal power-on reset provides controlled power up.

A reset input allows e

NCV7518A Features

* 16-bit SPI with Parity and Frame Error Detection

* 3.3 V/5 V Compatible Parallel and Serial Control Inputs

* 3.3 V/5 V Compatible Serial Output Driver

* Reset and Enable Inputs

* Open-drain Fault Flag

* Priority Encoded Diagnostics with Latched Uniqu

NCV7518-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: NCV7518A, NCV7518. Please refer to the document for exact specifications by model.

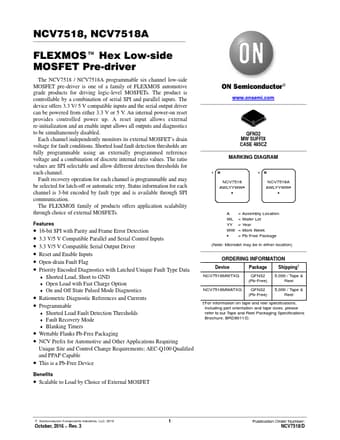

NCV7518A Datasheet Preview Page 2 NCV7518A Datasheet Preview Page 3
