NCV7424 Four Channel LIN Transceiver

Pin Name Description 1 TxD4 Transmit Data Input, Low for Dominant State; Pull-up to internal supply guaranteed above pin input threshold 2 RxD3 Receive Data Output; Low in Dominant State 3 TxD3 Transmit Data Input, Low for Dominant State; Pull-up to internal supply guaranteed above pin input th.

NCV7424 Four Channel LIN Transceiver NCV7424 is a four channel physical layer device using the Local Interconnect Network (LIN) protocol. It allows interfacing of four independent LIN physical buses and the LIN protocol controllers. The device is compliant to LIN 2.x Protocol Specification package and the SAE J2602 standard. The NCV7424 LIN device is a member of the in-vehicle networking (IVN) transceiver family. The device is a monolithic solution incorporating 4 times the NCV7321-1 transceive.

NCV7424 Features

* TSSOP

* 16 Package. Pin-out Compatible with One Single LIN NCV7321 Transceiver (Pin Numbers 4 to 7, and 10 to 13)

* Compliant with LIN2.x, Backwards Compatible to Version 1.3 and J2602

* Transmission Rate 1 kbps to 20 kbps

* Indefinite Short-Circuit Protection

NCV7424 Datasheet (130.99 KB)

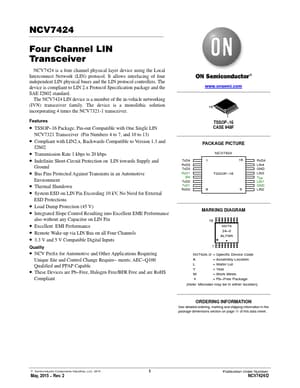

NCV7424 Datasheet Preview — Preview of NCV7424 PDF

Datasheet Details

Part number:

NCV7424

Manufacturer:

ON Semiconducto

File Size:

130.99 KB

Description:

Four channel lin transceiver.
