NCV896530 - Buck Converter

Product Overview

ON Semiconducto

Datasheet Details

Part number	NCV896530
Manufacturer	ON Semiconducto
File Size	222.00 KB
Description	Buck Converter
Datasheet	NCV896530 Datasheet

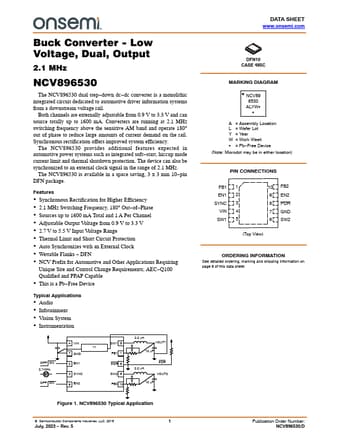

Additional preview pages of the NCV896530 datasheet.

Product details

Description

Pin Pin Name Type 1 FB1 Analog Input 2 EN1 Digital Input 3 SYNC Digital Input 4 VIN Analog / Power Input 5 SW1 Analog Output 6 SW2 Analog Output 7 GND Analog Ground 8 POR Digital Output 9 EN2 Digital Input 10 FB2 11 Exposed Pad Analog Input Power Ground Description Feedback voltage from the output 1. This is the input to the error amplifier.Enable for converter 1. This pin is active HIGH (equal or lower Analog Input voltage) and is turned off by logic LOW.Do

Features

expected in automotive power systems such as integrated soft.
start, hiccup mode current limit and thermal shutdown protection. The device can also be synchronized to an external clock signal in the range of 2.1 MHz. The NCV896530 is available in a space saving, 3 x 3 mm 10.
pin DFN package. Features.
Synchronous Rectification for Higher Efficiency.
2.1 MHz Switching Frequency, 180 Out.
of.
Phase.
Sources up to 1600 mA Total and 1 A Per Channel.
