NCV7341 - High Speed Low Power CAN Transceiver

Description

NCV7341 TxD 1 GND 2 VCC 3 RxD 4 VIO 5 EN 6 INH 7 NCV7341 14 STB 13 CA

Features

  • Features.
  • Ideal Passive Behavior when Supply Voltage is Removed.
  • Separate VIO Supply for Digital Interface Allowing Communication to CAN Controllers and Microcontrollers with Different Supply Levels.
  • Fully Compatible with the ISO 11898 Standard.
  • High Speed (up to 1 Mb).
  • Very Low Electromagnetic Emission (EME).
  • VSPLIT Voltage Source for Stabilizing the Recessive Bus Level if Split Termination is Used (Further Improvement of EME).
  • Dif.

📥 Download Datasheet

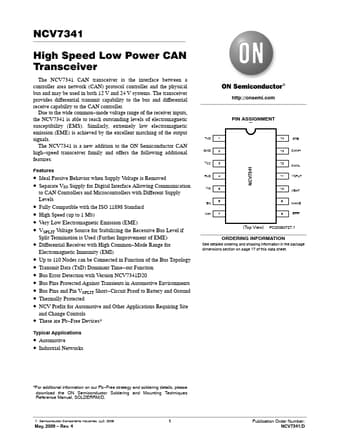

Datasheet preview – NCV7341

Datasheet Details

Part number NCV7341
Manufacturer onsemi
File Size 219.55 KB
Description High Speed Low Power CAN Transceiver
Datasheet download datasheet NCV7341 Datasheet
