NCV571 - 150 mA CMOS Low Iq Low Output Voltage Regulator

ON Semiconductor

📥 Download Datasheet

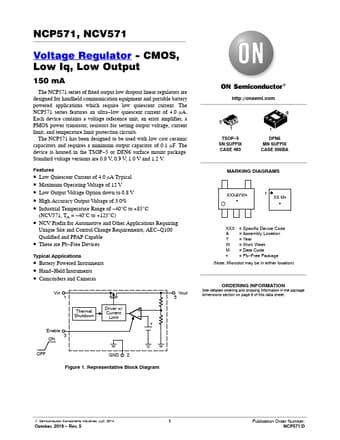

NCV571 Datasheet Preview — Preview of NCV571 PDF

Datasheet Details

Part number	NCV571
Manufacturer	ON Semiconductor
File Size	1.08 MB
Description	150 mA CMOS Low Iq Low Output Voltage Regulator
Datasheet	NCV571_ONSemiconductor.pdf

NCV571 Product details

Description

DFN6 TSOP 5 Pin Name 1 5 Vout 24 NC 3 2 GND 4 3 Enable 5 61 EP NC Vin EP Description Regulated output voltage.No Internal Connection.It is recommended to connect this pin to GND potential.Power supply ground.This input is used to place the device into low power standby.

Features

an ultra.
low quiescent current of 4.0 mA. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits. The NCP571 has been designed to be used with low cost ceramic capacitors and requires a minimum output capacitor of 0.1 mF. The device is housed in the TSOP.
5 or DFN6 surface mount package. Standard voltage versions are 0.8 V, 0.9 V, 1.0 V and 1.2 V. Fea.
