NCV8114

CMOS Low Dropout Voltage Regulator

NCV8114 Features

* Operating Input Voltage Range: 1.7 V to 5.5 V

* Available in Fixed Voltage Options: 0.9 V to 3.6 V Contact Factory for Other Voltage Options

* Very Low Quiescent Current of Typ. 50 mA

* Standby Current Consumption: Typ. 0.1 mA

* Low Dropout: 135 mV Typical a

NCV8114 General Description

Pin No. Pin Name Description 5 OUT Regulated output voltage pin. A small ceramic capacitor with minimum value of 1 mF is needed from this pin to ground to assure stability. 2 GND Power supply ground. 3 EN Driving EN over 0.9 V turns on the regulator. Driving EN below 0.4 V puts the regul.

NCV8114 Datasheet (969.95 KB)

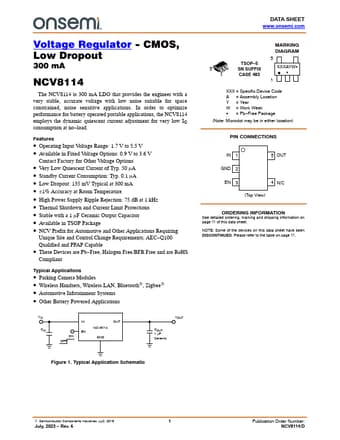

Preview of NCV8114 PDF

Datasheet Details

Part number:

NCV8114

Manufacturer:

ON Semiconductor ↗

File Size:

969.95 KB

Description:

Cmos low dropout voltage regulator.
Voltage Regulator - CMOS, Low Dropout 300 mA NCV8114 The NCV8114 is 300 mA LDO that provides the engineer with a very stable, accurate voltage with lo.
