NCV8154 - Dual Input Voltage Regulator

ON Semiconductor

📥 Download Datasheet

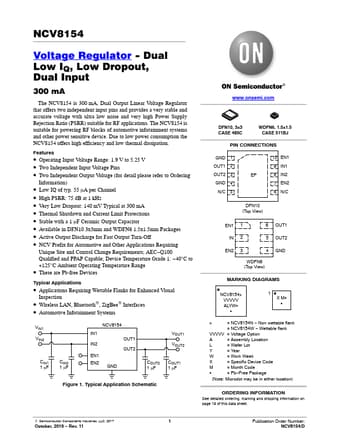

NCV8154 Datasheet Preview — Preview of NCV8154 PDF

Datasheet Details

Part number	NCV8154
Manufacturer	ON Semiconductor
File Size	1.46 MB
Description	Dual Input Voltage Regulator
Datasheet	NCV8154-ONSemiconductor.pdf

NCV8154 Product details

Description

DFN10 Pin No.Pin Name Description 1 GND Power supply ground.Soldered to the copper plane allows for effective heat dissipation.2 OUT1 Regulated output voltage of the first channel.A small 1 mF ceramic capacitor is needed from this pin to ground to assure stability.3 OUT2 Regulated output voltage of the second channel.A small 1 mF ceramic capacitor is needed from this pin to ground to assure stability.4 GND Power supply ground.Soldered to the copper plane allows

Features

Operating Input Voltage Range: 1.9 V to 5.25 V.
Two Independent Input Voltage Pins.
Two Independent Output Voltage (for detail please refer to Ordering Information).
Low IQ of typ. 55 mA per Channel.
High PSRR: 75 dB at 1 kHz.
Very Low Dropout: 140 mV Typical at 300 mA.
Thermal Shutdown and Current Limit Protections.
Stable with a 1 mF Ceramic Output Capacitor.
Available in DFN10 3x3mm and WDFN6 1.5x1.5mm Packages.
