NCV8164 - 300mA LDO Regulator

ON Semiconductor

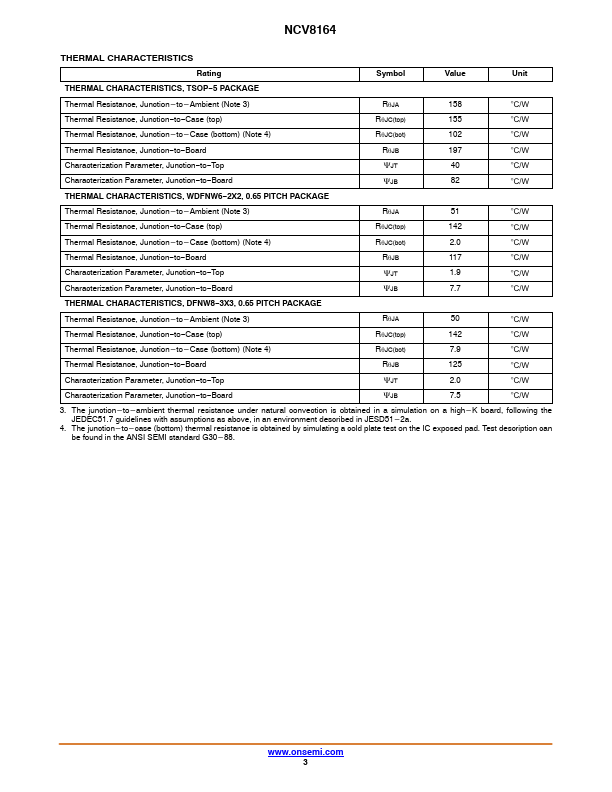

NCV8164 Datasheet Preview — Preview of NCV8164 PDF

Datasheet Details

Part number	NCV8164
Manufacturer	ON Semiconductor ↗
File Size	559.34 KB
Description	300mA LDO Regulator
Datasheet	NCV8164-ONSemiconductor.pdf

NCV8164 Product details

Description

Pin No. 5 Pin No.WDFNW6 Pin No.DFNW8 1 6 8 5 1 1 3 4 7 4/ 3 3 2 5 6 /4 2 2 2 2 4, 5 EPAD EPAD Pin Name IN OUT EN PG GND ADJ SNS N/C EPAD Description Input voltage supply pin Regulated output voltage.The output should be bypassed with small 1 mF ceramic capacitor Chip enable: Applying VEN < 0.25 V disables the regulator, Pulling VEN > 0.7 V enables the LDO Power Good, open collector.Use 10 k

Features

Operating Input Voltage Range: 1.6 V to 5.5 V.
Available in Fixed Voltage Option: 1.2 V to 5.0 V.
Adjustable Version Reference Voltage: 1.2 V.
±2% Accuracy Over Load and Temperature.
Ultra Low Quiescent Current Typ. 30 mA.
Standby Current: Typ. 0.1 mA.
Very Low Dropout: 110 mV at 300 mA for 3.3 V Variant.
Ultra High PSRR: Typ. 85 dB at 10 mA, f = 1 kHz.
Ultra Low Noise: 9 mVRMS (Fixed Version).
Stable with.
