NRVHP160SF Datasheet - ON Semiconductor

NRVHP160SF Surface Mount Ultrafast Power Rectifier

NHP160SF, NRVHP160SF Surface Mount Ultrafast Power Rectifier Plastic SOD 123FL Package This SOD 123FL ultrafast rectifier provides fast switching performance with soft recovery in a compact thermally efficient package. Its compact footprint makes it ideally suited to portable and automotive applications where board space is at a premium. Its low profile makes it a good option for flat panel display and other applications with limited vertical clearance. The device offers low lea.

NRVHP160SF Features

* Fast Soft Switching for Reduced EMI and Higher Efficiency

* Low Profile

* Maximum Height of 1.0 mm

* Small Footprint

* Footprint Area of 5.94 mm2

* NRV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

NRVHP160SF Datasheet (63.83 KB)

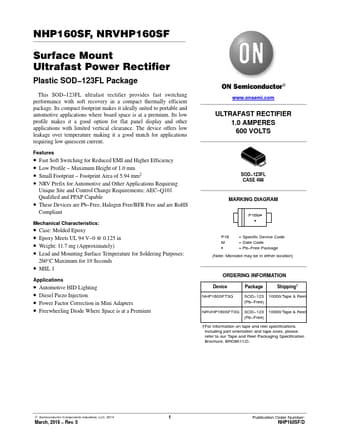

Preview of NRVHP160SF PDF
NRVHP160SF Datasheet Preview Page 2 NRVHP160SF Datasheet Preview Page 3

Datasheet Details

Part number:

NRVHP160SF

Manufacturer:

ON Semiconductor ↗

File Size:

63.83 KB

Description:

Surface mount ultrafast power rectifier.
