NRVHP820MFD Datasheet - ON Semiconductor

NRVHP820MFD - Switch-Mode Power Rectifier

NRVHP820MFD Switch-Mode Power Rectifier This ultrafast rectifier in the dual flag SO 8 flat lead package offers designers a unique degree of versatility and design freedom.

The two devices are electrically independent and can be used separately, as common cathode, as common anode or in series as a function of board level layout.

The exposed pad design provides low thermal resistance.

The clip attach design creates a package with very efficient die size to board area ratio.

While thermal

NRVHP820MFD Features

* New Package Provides Capability of Inspection and Probe After Board Mounting

* Low Forward Voltage Drop

* 175°C Operating Junction Temperature

* NRV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC

* Q101

NRVHP820MFD-ONSemiconductor.pdf

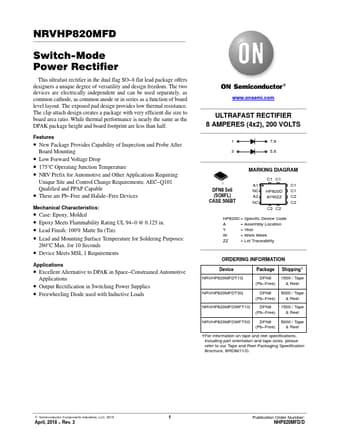

Preview of NRVHP820MFD PDF
NRVHP820MFD Datasheet Preview Page 2 NRVHP820MFD Datasheet Preview Page 3

Datasheet Details

Part number:

NRVHP820MFD

Manufacturer:

ON Semiconductor ↗

File Size:

148.84 KB

Description:

Switch-mode power rectifier.
