NRVHP220SF Datasheet - ON Semiconductor

NRVHP220SF - Ultrafast Power Rectifier

NHP220SF, NRVHP220SF Surface Mount Ultrafast Power Rectifier Plastic SOD 123FL Package This SOD 123FL ultrafast rectifier provides fast switching performance with soft recovery in a compact thermally efficient package.

Its compact footprint makes it ideally suited to portable and automotive applications where board space is at a premium.

Its low profile makes it a good option for flat panel display and other applications with limited vertical clearance.

The device offers low lea

NRVHP220SF Features

* Fast Soft Switching for Reduced EMI and Higher Efficiency

* Low Profile

* Maximum Height of 1.0 mm

* Small Footprint

* Footprint Area of 5.94 mm2

* NRV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

NRVHP220SF-ONSemiconductor.pdf

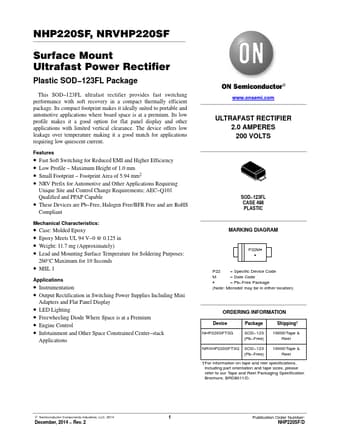

Preview of NRVHP220SF PDF
NRVHP220SF Datasheet Preview Page 2 NRVHP220SF Datasheet Preview Page 3

Datasheet Details

Part number:

NRVHP220SF

Manufacturer:

ON Semiconductor ↗

File Size:

159.80 KB

Description:

Ultrafast power rectifier.
