NSB1706DMW5T1 - Dual Bias Resistor Transistor

NSB1706DMW5T1 Dual Bias Resistor Transistor NPN Silicon Surface Mount Transistors with Monolithic Bias Resistor Network The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

These digital transistors are designed to replace a single device and its external resistor bias network.

The BRT eliminates these individual components by integrating them into a single device.

I

NSB1706DMW5T1 Features

* http://onsemi.com (5) (4) Q1 R2 R1 (1) (2) Q2 R2 R1 (3)

* Simplifies Circuit Design Reduces Board Space Reduces Component Count Pb

* Free Package is Available MAXIMUM RATINGS (TA = 25°C unless otherwise noted, common for Q1 and Q2) Rating Collector-

NSB1706DMW5T1_ONSemiconductor.pdf

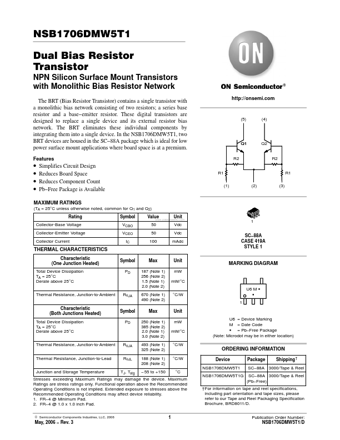

Preview of NSB1706DMW5T1 PDF
