NSB12ANT3G Datasheet - ON Semiconductor

NSB12ANT3G 600 Watt Peak Power Zener Transient Voltage Suppressor

NSB12ANT3G 600 Watt Peak Power Zener Transient Voltage Suppressor Unidirectional http://onsemi.com The NSB12ANT3G is designed to protect voltage sensitive components from high voltage, high energy transients. This device has excellent clamping capability, high surge capability, low zener impedance and fast response time. The NSB12ANT3G is ideally suited for use in computer hard disk drives, communication systems, automotive, numerical controls, process controls, medical equipment, business mach.

NSB12ANT3G Features

* PLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSOR 600 WATT PEAK POWER

* ăWorking Peak Reverse Voltage Range - 12 V

* ăPeak Power - 600 Watts @ 1 ms at Maximum Clamp Voltage @ Peak Pulse Current Cathode Anode

* ăESD Rating of Class 3 (> 16 kV) per Human Body Mode

NSB12ANT3G_ONSemiconductor.pdf

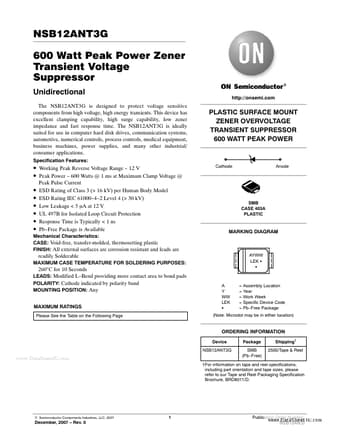

Preview of NSB12ANT3G PDF
NSB12ANT3G Datasheet Preview Page 2 NSB12ANT3G Datasheet Preview Page 3

Datasheet Details

Part number:

NSB12ANT3G

Manufacturer:

ON Semiconductor ↗

File Size:

111.17 KB

Description:

600 watt peak power zener transient voltage suppressor.
