NSB1706DMW5T1G Dual Bias Resistor Transistor

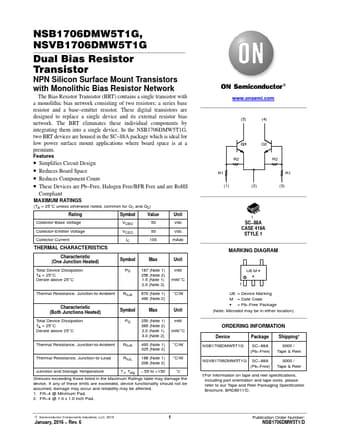

NSB1706DMW5T1G, NSVB1706DMW5T1G Dual Bias Resistor Transistor NPN Silicon Surface Mount Transistors with Monolithic Bias Resistor Network The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. These digital transistors are designed to replace a single device and its external resistor bias network. The BRT eliminates these individual components by integrating them .

NSB1706DMW5T1G Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* These Devices are Pb

* Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25°C unless otherwise noted, common for Q1 and Q2) Rating Symbol Value Unit Collect

NSB1706DMW5T1G Datasheet (138.85 KB)
