NSBA144EDP6, NSBA144EDXV6 Datasheet - ON Semiconductor

NSBA144EDP6 - Dual PNP Bias Resistor Transistors

MUN5113DW1, NSBA144EDXV6, NSBA144EDP6 Dual PNP Bias Resistor Transistors R1 = 47 kW, R2 = 47 kW PNP Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

The BRT eliminates these individual components by

NSBA144EDP6 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

NSBA144EDXV6-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: NSBA144EDP6, NSBA144EDXV6. Please refer to the document for exact specifications by model.

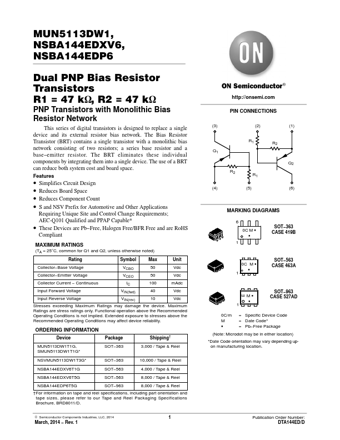

NSBA144EDP6 Datasheet Preview Page 2 NSBA144EDP6 Datasheet Preview Page 3
