NSBA144EDXV6 Dual PNP Bias Resistor Transistors

MUN5113DW1, NSBA144EDXV6, NSBA144EDP6 Dual PNP Bias Resistor Transistors R1 = 47 kW, R2 = 47 kW PNP Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. The BRT eliminates these individual components by .

NSBA144EDXV6 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

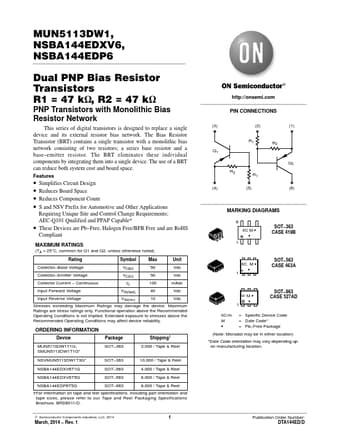

NSBA144EDXV6 Datasheet (85.17 KB)
