NSBA144WDXV6 - Dual PNP Bias Resistor Transistors

MUN5137DW1, NSBA144WDXV6, NSBA144WDP6 Dual PNP Bias Resistor Transistors R1 = 47 kW, R2 = 22 kW PNP Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

The BRT eliminates these individual components by

NSBA144WDXV6 Features

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* These Devices are Pb

* Free,

NSBA144WDXV6-ONSemiconductor.pdf

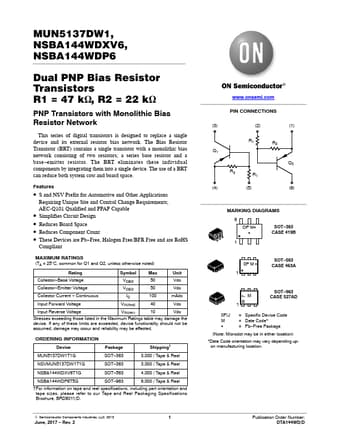

Preview of NSBA144WDXV6 PDF
NSBA144WDXV6 Datasheet Preview Page 2 NSBA144WDXV6 Datasheet Preview Page 3

Datasheet Details

Part number:

NSBA144WDXV6

Manufacturer:

ON Semiconductor ↗

File Size:

390.99 KB

Description:

Dual pnp bias resistor transistors.
