NSBC144EDXV6 Dual NPN Bias Resistor Transistors

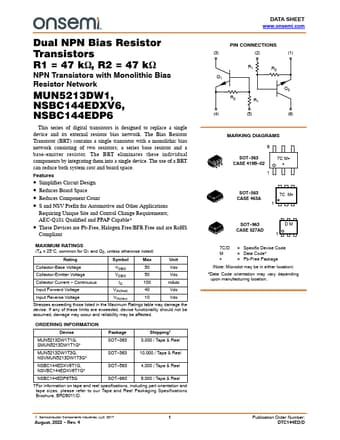

Dual NPN Bias Resistor Transistors R1 = 47 kW, R2 = 47 kW NPN Transistors with Monolithic Bias Resistor Network MUN5213DW1, NSBC144EDXV6, NSBC144EDP6 This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these individual components by integrati.

NSBC144EDXV6 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb-Free, Ha
