NSBC144EF3, Digital Transistors

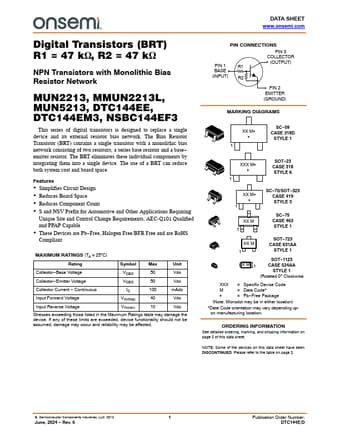

DATA SHEET www.onsemi.com Digital Transistors (BRT) R1 = 47 kW, R2 = 47 kW NPN Transistors with Monolithic Bias Resistor Network MUN2213, MMUN2213L, MUN5213, DTC144EE, DTC144EM3, NSBC144EF3 This series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

The BRT

NSBC144EF3 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free, Halogen Free/BFR Fr
