NSBC144EPDXV6 Complementary Bias Resistor Transistors

Complementary Bias Resistor Transistors R1 = 47 kW, R2 = 47 kW NPN and PNP Transistors with Monolithic Bias Resistor Network MUN5313DW1, NSBC144EPDXV6, NSBC144EPDP6 This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these individual componen.

NSBC144EPDXV6 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb-Free, Halogen Free/BFR Free

NSBC144EPDXV6 Datasheet (399.80 KB)

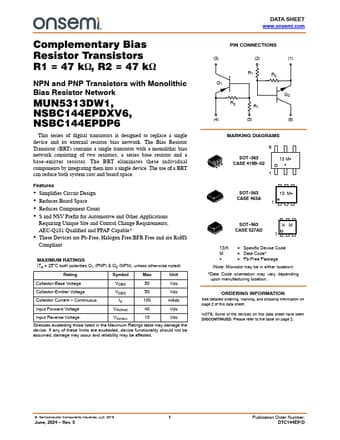

Preview of NSBC144EPDXV6 PDF
NSBC144EPDXV6 Datasheet Preview Page 2 NSBC144EPDXV6 Datasheet Preview Page 3

Datasheet Details

Part number:

NSBC144EPDXV6

Manufacturer:

ON Semiconductor ↗

File Size:

399.80 KB

Description:

Complementary bias resistor transistors.
