NSS60200L, NSS60200LT1G Datasheet - ON Semiconductor

NSS60200L - PNP Transistor

NSS60200L 60 V, 4.0 A, Low VCE(sat) PNP Transistor ON Semiconductor’s e2PowerEdge family of low VCE(sat) transistors are miniature surface mount devices featuring ultra low saturation voltage (VCE(sat)) and high current gain capability. These are designed for use in low voltage, high speed switching applications where affordable efficient energy control is important. Typical applications are DC DC converters and power management in portable and battery powered products such as cellular.

NSS60200L Features

* NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC

* Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25°C) Rating Symbol Max Uni

NSS60200LT1G-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: NSS60200L, NSS60200LT1G. Please refer to the document for exact specifications by model.

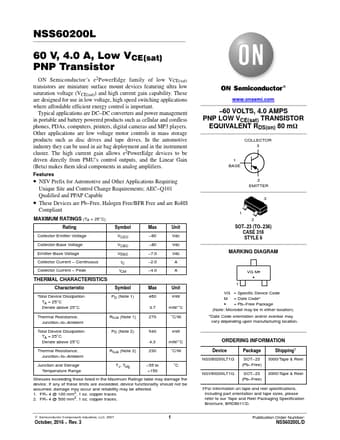

NSS60200L Datasheet Preview Page 2 NSS60200L Datasheet Preview Page 3

Datasheet Details

Part number:

NSS60200L, NSS60200LT1G

Manufacturer:

ON Semiconductor ↗

File Size:

86.86 KB

Description:

Pnp transistor.

Note:

This datasheet PDF includes multiple part numbers: NSS60200L, NSS60200LT1G.
Please refer to the document for exact specifications by model.
