NSSB146AT BLUE LED

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Heat-Resistant Polymer () Silicone Resin(with diffuser) + Au-plated Copper Alloy 0.0050g(TYP) * 。 Dimensions do not include mold flash or metal burr. Protection Device 4 SOLDERING NICHIA STS-DA1-4506E

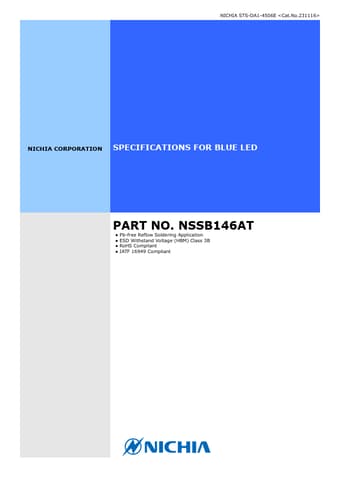

NICHIA STS-DA1-4506E NICHIA CORPORATION SPECIFICATIONS FOR BLUE LED PART NO. NSSB146AT Pb-free Reflow Soldering Application ESD Withstand Voltage (HBM) Class 3B RoHS Compliant IATF 16949 Compliant SPECIFICATIONS NICHIA STS-DA1-4506E (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 60 Pulse Forward Current IFP 200 ESD Withstand Voltage (HBM) VESD 8 Allowable Reverse Current IR 85 Power Di.
