NSSB146AT-NA Datasheet - NICHIA

NSSB146AT-NA LED

NICHIA STS-DA1-4552E NICHIA CORPORATION SPECIFICATIONS FOR LED PART NO. NSSB146AT-NA Pb-free Reflow Soldering Application ESD Withstand Voltage (HBM) Class 3B RoHS Compliant IATF 16949 Compliant SPECIFICATIONS NICHIA STS-DA1-4552E (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 60 Pulse Forward Current IFP 200 ESD Withstand Voltage (HBM) VESD 8 Allowable Reverse Current IR 85 Power Diss.

NSSB146AT-NA Datasheet (360.25 KB)

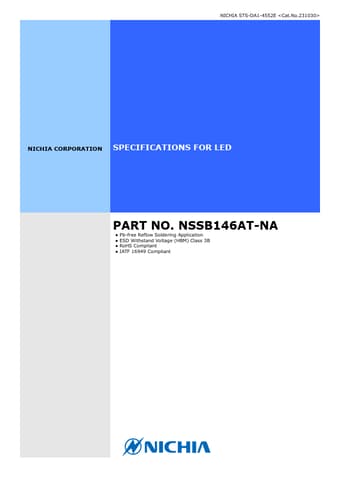

Preview of NSSB146AT-NA PDF

Datasheet Details

Part number:

NSSB146AT-NA

Manufacturer:

NICHIA

File Size:

360.25 KB

Description:

Led.
