NVC040N120SC1

SiC MOSFET

ON Semiconductor

NVC040N120SC1 Features

* 1200 V @ TJ = 175°C

* Typ RDS(on) = 40 mW at VGS = 20 V, ID = 40 A

* High Speed Switching with Low Capacitance

* 100% UIL Tested

* AEC

* Q101 Qualified and PPAP Capable

* This Device is Halide Free and RoHS Compliant with exemption 7a, Pb

NVC040N120SC1 General Description

Silicon Carbide (SiC) MOSFET uses a completely new technology that provide superior switching performance and higher reliability compared to Silicon. In addition, the low ON resistance and compact chip size ensure low capacitance and gate charge. Consequently, system benefits include highest efficie.

NVC040N120SC1 Datasheet (173.80 KB)

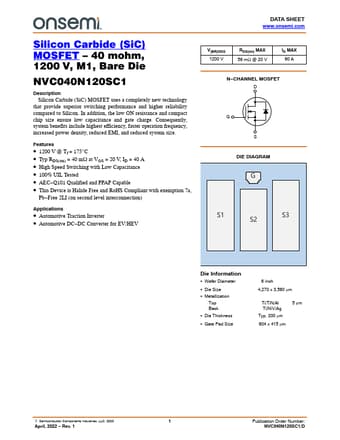

NVC040N120SC1 Datasheet Preview — Preview of NVC040N120SC1 PDF

Datasheet Details

Part number:

NVC040N120SC1

Manufacturer:

ON Semiconductor ↗

File Size:

173.80 KB

Description:

Sic mosfet.
